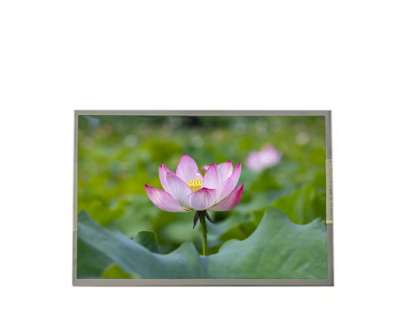

1.TIANMA P1230FHF1MA00 Application Details
Basic Information : | Brand | TIANMA | Model | P1230FHF1MA00 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Outdoor High Brightness |
Screen Size | 12.3 inch | Alias |
|
Environment : | Storage Temp. | -40 ~ 95°C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration Level |
|
Typical Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Bar Display，180°Reverse |
2.TIANMA P1230FHF1MA00 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)×720 | Dot Pitch (W×H) | 0.05075×0.15225 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.15225×0.15225 mm [166PPI] |
Mechanical Size : | Active Viewing(W×H) | 292.32×109.62 mm | Bezel Area | - |
Outline Dim.(W×H) | 305.92×123.62 mm | Depth(mm) | 7.0/9.4 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 8:3 (W : H) | Orientation | Landscape type |
Other Spec : | Weight | 322g (Typ.) | Surface | Hard coating |
3.TIANMA P1230FHF1MA00 Optical Details
Basic Information : | Brightness | 1400 cd/m² (Typ.) | Contrast Ratio | 1100:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 20 (Max.)(Tr+Td) (ms) |
Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
7444K | 16.7M (8-bit) | X:0.297; Y:0.326 |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB Coverage | 97% |
Adobe RGB Coverage | 77% | DCI-P3 Coverage | 77% |
Rec.2020 Coverage | 55% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Luminance Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Performance : | 3D Type | - | Outdoor Visibility | Sunlight Readable |
4. TIANMA P1230FHF1MA00 Electronics Details
Frame Rate : | 60Hz |
Power Consumption : | 13.1W (Typ.) |
Reverse Scan : | Yes (180°) |
5.TIANMA P1230FHF1MA00 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Input Current | - |
Consumption | 1.07/1.61W (Typ./Max.) |
Signal Type : | LVDS (2 ch, 8-bit) |
Interface Features : | Position | - | Type | Connector |
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|
| 1 pcs | 0.5 mm | 50 pins |
|
6.TIANMA P1230FHF1MA00 Backlight Details
Backlight Features : | Type | WLED | Amount | 8S4P | Position | Edge light type |
Replacement | - | Shape | 4 strings | Life Time | 30K(Typ.) Hours |
Interface Features : | Position | - | Type | FPC |
Lamp Driver | With LED Driver |
Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
|
| 1 pcs | 0.5 mm | 10 pins |
|
7.TIANMA P1230FHF1MA00 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Inner box | 6 | 1 | 520×345×74 | N/A | 0.0133 |
Outer box | 18 | 3 | 544×365×250 | 10.70 | 0.0496 |
