• Technical Parameters

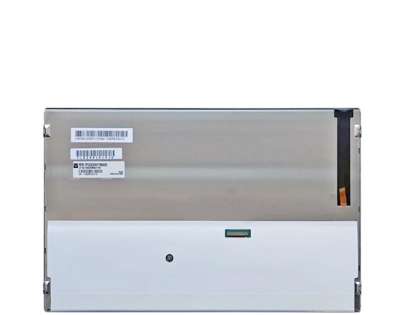

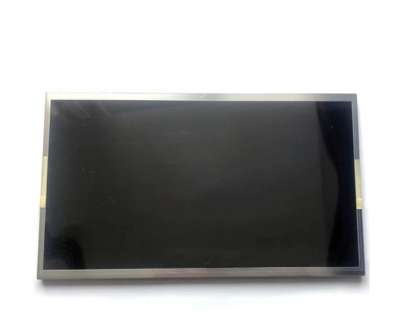

TIANMA P1330FHF1MA00 13.3inch LCD Panel

• 1. TIANMA P1330FHF1MA00 Application Details

  Basic Info :	Panel Brand	TIANMA	Panel Model	P1330FHF1MA00
  	Diagonal Size	13.3"	Application	Industrial
  	Panel Type	a-Si TFT-LCD , LCM	Model Alias	TM133VDGP02-00
  Reliability :	Operating Temp.	-20 ~~70 °C	Storage Temp.	-30 ~~ 80 °C
  	RoHS State	RoHS	Vibration Rating	-
  Specific Features	Ultra Hight Brightness,WLED Backlight,Life≥50K hours




  2. TIANMA P1330FHF1MA00 Mechanical Details

  Pixel Features :	Pixel Format	1920(RGB)×1080, FHD	Dot Pitch(W×H)	0.051×0.153 mm
  	Configuration	RGB Vertical Stripe	Pixel Pitch	0.153×0.153 mm  [166PPI]
  Mechanical Size :	Active Viewing	293.76(W)×165.24(H) mm	Overall Dim.	308(W)×186(H) mm
  	Bezel Area	297.16(W)×168.64(H) mm	Outline Depth	7.23/10.0 (Typ./Max.) mm
  Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
  	Aspect Ratio	16:9 (H:V)	Shape Style
  Fixation :	Side mounting holes (4-M3) on left, right bezel
  Other Features :	Weight	561g (Typ.)	Surface	Hard coating




  3. TIANMA P1330FHF1MA00 Optical Details

  Basic Information :	Brightness	1000 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
  	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Optical Mode	SFT, Normally Black, Transmissive
  	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) ms
  Color Performance :	Chromaticity	Wx:0.306; Wy:0.325	Color Numbers	16.7M (8-bit)
  	Color Temperature	6915K	White Variation	1.25/1.33 (Typ./Max.)(9 points)
  1931 Color Gamut :	NTSC Ratio	75%	sRGB	95% coverage
  	Adobe RGB	76% coverage	DCI-P3	78% coverage
  	Rec.2020	56% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-




  4. TIANMA P1330FHF1MA00 Electronics Details

  Frame Frequency :

  60Hz




  5. TIANMA P1330FHF1MA00 Backlight Details

  Back-light Features:

  Lamp Shape

  WLED

  Amount

  -

  Life Time

  50K(Typ.) (Hours)

  Replacement

  -

  Lamp Shape

  -

  Position

  Edge light type

  Lamp Electrical :

  Input Voltage

  20.3V (Typ.)

  Input Current

  640mA (Typ.)

  Consumption

  1.30W (Typ.)

  Interface Features :

  Position

  -

  Type

  Connector

  Interface Detail :

  Brand

  Model

  Pitch

  Pins

  Amount

  Pin Assignment

  HRS

  FH34SRJ-10S-0.5SH(50)

  0.5mm

  10pins

  1pcs

  BLE-10PINS-AAAANNCCCC

  Backlight Driver :

  No




  6. TIANMA P1330FHF1MA00 Interface Details

  Signal Systerm :	Input Current		-		Input Voltage		3.3V (Typ.)
  	Consumption		2.2W (Typ.)		Signal Interface		LVDS (2 ch, 8-bit)
  Interface Features :	Position		-		Type		Connector
  Interface Detail :	Brand	Model		Pitch	Pins	Amount		Pin Assignment
  	HRS	DF81-40S-0.4H(51)		0.4 mm	40 pins	1 pcs




  7. TIANMA P1330FHF1MA00 Packing Details

  Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)
  Carton	10	1	360×335×253	7.38	0.0305
