• Technical Parameters

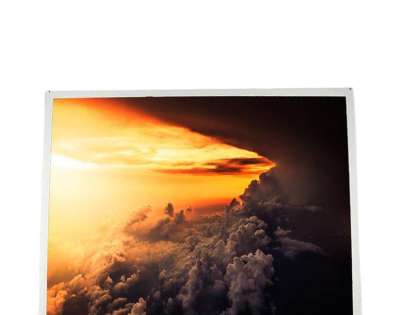

TIANMA P1330FHF1MB10 13.3inch LCD Panel

• 1. TIANMA P1330FHF1MB10 Application Details

  Basic Info :	Panel Brand	TIANMA	Panel Model	P1330FHF1MB10
  	Diagonal Size	13.3"	Application	Industrial
  	Panel Type	a-Si TFT-LCD , LCM	Model Alias	-
  Reliability :	Operating Temp.	-20 ~~70 °C	Storage Temp.	-30 ~~ 80 °C
  	RoHS State	RoHS	Vibration Rating	-
  Specific Features :	Hight Brightness,WLED Backlight,Life≥50K hours，With LED Driver，Matte




  2. TIANMA P1330FHF1MB10 Mechanical Details

  Pixel Features :	Pixel Format	1920(RGB)×1080, FHD	Dot Pitch(W×H)	0.051×0.153 mm
  	Configuration	RGB Vertical Stripe	Pixel Pitch	0.153×0.153 mm  [166PPI]
  Mechanical Size :	Active Viewing	293.76(W)×165.24(H) mm	Bezel Area	297.16×168.64 mm (H×V)
  	Outline Dim.	308×186 mm (H×V)	Outline Depth	7.23/10.0 (Typ./Max.) mm
  Outline Features :	Form Factor	Flat Rectangle	Orientation	Landscape type
  	Aspect Ratio	16:9 (H:V)	Shape Style
  Holes & Brackets :	Side mounting holes (4-M3) on left, right bezel
  Other Features :	Weight	TBD	Surface	Antiglare




  3. TIANMA P1330FHF1MB10 Optical Details

  Basic Information :	Brightness	600 cd/m² (Typ.)	Contrast Ratio	1000:1 (Typ.) (Transmissive)
  	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Optical Mode	SFT, Normally Black, Transmissive
  	Viewing Direction	Symmetry	Response Time	25 (Typ.)(Tr+Td) ms
  Color Performance :	Chromaticity	Wx:0.293; Wy:0.303	Color Numbers	16.7M (8-bit)
  	Color Temperature	8216K	White Variation	1.33 (Max.)(9 points)
  1931 Color Gamut :	NTSC Ratio	69%	sRGB	90% coverage
  	Adobe RGB	70% coverage	DCI-P3	72% coverage
  	Rec.2020	52% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmittance	-




  4. TIANMA P1330FHF1MB10 Electronics Details

  Reverse Scan :

  No




  5. TIANMA P1330FHF1MB10 Backlight Details

  Back-light Features:

  Lamp Shape

  WLED

  Amount

  7S8P

  Life Time

  50K(Typ.) (Hours)

  Replacement

  -

  Lamp Shape

  8 strings

  Position

  Edge light type

  Interface Features :

  Position

  -

  Type

  Connector

  Interface Detail :

  Brand

  Model

  Pin Pitch

  Pins

  Amount

  Configuration

  HRS

  DF19L-14P-1H(52)

  1.0 mm

  14pins

  1pcs

  Backlight Driver :

  With LED Driver

  Driver Electrical :

  Input Current

  -

  Input Voltage

  12.0±0.5V

  Consumption

  8.12W (Typ.)




  6. TIANMA P1330FHF1MB10 Interface Details

  Signal Systerm :	Input Current		-		Input Voltage		3.3V (Typ.)
  	Consumption		2.2W (Typ.)		Signal Interface		LVDS (2 ch, 8-bit)
  Interface Features :	Position		-		Type		Connector
  Interface Detail :	Brand	Model		Pitch	Pins	Amount		Pin Assignment
  	HRS	MDF76KBW-30S-1H(56)		1.0mm	30 pins	1 pcs




  7. TIANMA P1330FHF1MB10 Packing Details

  Package Type	Pcs/Package	Box/Package	Package LWH (mm)	G.W (kgs)	Volume (m³)
  Carton	10	1	360×335×253	7.38	0.0305
