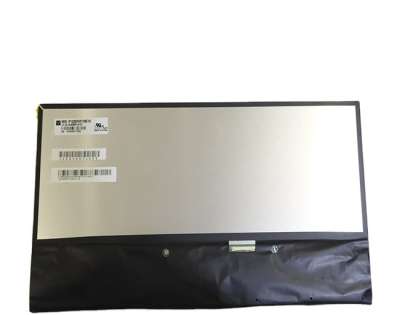

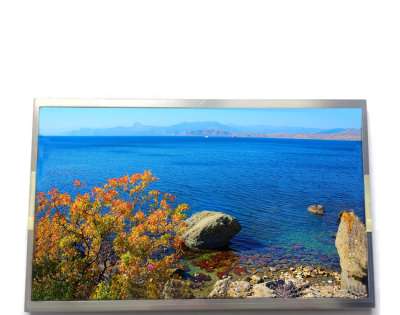

1. TIANMA P1330FHF1ME10 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P1330FHF1ME10 |
Diagonal Size | 13.3" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | TM133VDGP01-00 |
Reliability : | Operating Temp. | -20 ~~70 °C | Storage Temp. | -30 ~~ 80 °C |
RoHS State | RoHS | Vibration Rating | - |
Specific Features : | WLED Backlight,With LED Driver，Matte |
2. TIANMA P1330FHF1ME10 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.051×0.153 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.153×0.153 mm [166PPI] |
Mechanical Size : | Active Viewing | 293.76(W)×165.24(H) mm | Overall Dim. | 305.35(W)×178.56(H) mm |
Bezel Area | - | Outline Depth | 3.7/8.0 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Fixation : | Without |
Other Features : | Weight | 346±17g | Surface | Antiglare |
3. TIANMA P1330FHF1ME10 Optical Details
Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | Wx:0.293; Wy:0.303 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 8216K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 69% | sRGB | 90% coverage |
Adobe RGB | 70% coverage | DCI-P3 | 72% coverage |
Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1330FHF1ME10 Electronics Details
5. TIANMA P1330FHF1ME10 Backlight Details
Back-light Features: | Lamp Shape | 8 strings | Amount | 8S8P | Life Time | 30K(Typ.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type |
Interface Features : | Position | - | Type | Included in signal interface |
Backlight Driver : | With LED Driver |
Driver Electrical : | Input Current | 432mA (Typ.) | Input Voltage | 12.0±0.5V |
Consumption | 5.18W (Typ.) |
6. TIANMA P1330FHF1ME10 Interface Details
Signal Systerm : | Input Current | - | Input Voltage | 3.3V (Typ.) |
Consumption | 2.2/2.5W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2 |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs |
|
7. TIANMA P1330FHF1ME10 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 447×415×328 | 5.30 | 0.0608 |
Pallet | 120 | 12 | N/A | N/A | N/A |
