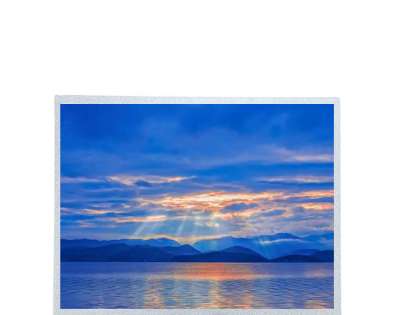

1. TIANMA P1500XGF1MB01 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P1500XGF1MB01 |
Diagonal Size | 15.0" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -20 ~~70 °C | Storage Temp. | -30 ~~ 80 °C |
RoHS State | RoHS | Vibration Rating | 1.2G (11.76 m/s²) |
Specific Features : | WLED Backlight,Life≥50K hours，With LED Driver,Upside I/F,6/8bit，Matte |
2. TIANMA P1500XGF1MB01 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] |
Mechanical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 306.13×230.1 mm (H×V) |
Bezel Opening | 326.5×253.5 mm (H×V) | Outline Depth(mm) | 9.5/12.3 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3(H:V) | Shape Style |
|
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | TBD | Surface | Antiglare |
3. TIANMA P1500XGF1MB01 Optical Details
Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 64% | sRGB | 90% coverage |
Adobe RGB | 67% coverage | DCI-P3 | 67% coverage |
Rec.2020 | 48% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P1500XGF1MB01 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5. TIANMA P1500XGF1MB01 Backlight Details
Back-light Features: | Lamp Shape | WLED | Amount | 10S4P | Life Time | 50K(Typ.) (Hours) |
Replacement | - | Lamp Shape | 4 strings | Position | Edge light type |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSB24038P5 | 1.25 mm | 5pins | 1 pcs |
|
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | TBD |
6. TIANMA P1500XGF1MB01 Interface Details
Signal Systerm : | Voltage Input | 3.3V (Typ.) | Current Input | TBD |
Consumption | TBD | Signal Interface | LVDS (1 ch, 6/8-bit) |
Interface Features : | Type | Connector | Position | Upper middle of panel |
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
P-TWO | 185083-20121 | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010D |
