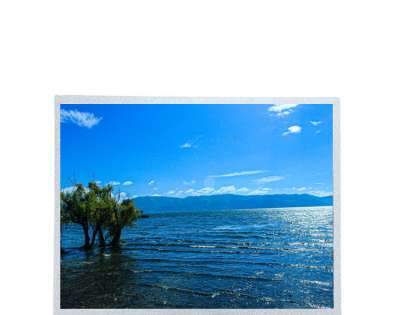

1. TIANMA P1500XGF2MA00 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P1500XGF2MA00 |
Diagonal Size | 15.0" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -20 ~~70 °C | Storage Temp. | -30 ~~ 80 °C |
RoHS State | RoHS | Vibration Rating | 1.2G (11.76 m/s²) |
Specific Features : | Ultra High Brightness，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte |
2. TIANMA P1500XGF2MA00 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.099×0.297 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.297×0.297 mm (H×V) [85PPI] |
Mechanical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | 307.4×231.3 mm (H×V) |
Outline Dim. | 326.5×253.5 mm (H×V) | Outline Depth(mm) | 13.0±0.3 mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3(H:V) | Shape Style |
|
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | TBD | Surface | Antiglare |
3. TIANMA P1500XGF2MA00 Optical Details
Basic Information : | Brightness | 1500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms |
Color Performance : | Chromaticity | - | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | - | Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4. TIANMA P1500XGF2MA00 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | TBD |
5. TIANMA P1500XGF2MA00 Backlight Details
Back-light Features: | Lamp Shape | WLED | Amount | 7S6P | Life Time | 50K(Typ.) (Hours) |
Replacement | - | Lamp Shape | 6 strings | Position | Edge light type |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
molex | 504050-1291 | 1.5 mm | 12 pins | 1 pcs |
|
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | TBD |
6. TIANMA P1500XGF2MA00 Interface Details
Signal Systerm : | Voltage Input | 3.3V (Typ.) | Current Input | TBD |
Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) |
Interface Features : | Type | Connector | Position | - |
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSB240420HE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080A |
7. TIANMA P1500XGF2MA00 Carton Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 10 | 1 | 438×402×464 | 312.10 | 0.0817 |
Pallet | 120 | 12 | N/A | N/A | N/A |
