1. TIANMA P0840XGF1MA00 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P0840XGF1MA00 |
Diagonal Size | 8.4" | Application | Industrial，Outdoor High Brightness |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -30 ~~ 80 °C | Storage Temp. | -40 ~~ 90 °C |
RoHS State | RoHS | Vibration Rating | 2.0G (19.6 m/s²) |
Specific Features : | Wide Temperature，Ultra High Brightness , WLED Backlight,Life≥100K hour， 180° Reverse, 6/8bit，Matte |
2. TIANMA P0840XGF1MA00 Mechanical Details

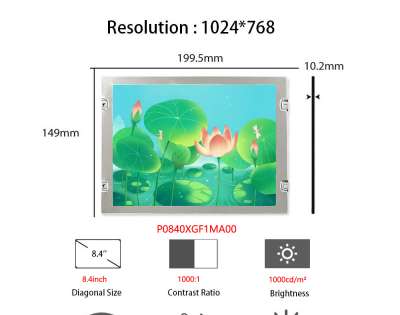

Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch | 0.0555×0.1665 (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.1665×0.1665 (H×V) [152PPI] |

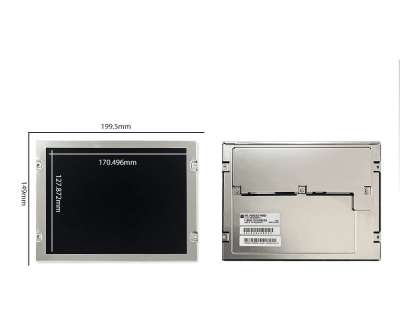

Mechanical Size : | Active Viewing(mm) | 170.496(H) × 127.872(V) | Outline Dim.(mm) | 199.5(H) × 149(V) |
Overall Dim.(mm) | 173.5(H) × 130.87(V) | Outline Depth | 7.6/10.2 (Typ./Max.) |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style |
|
Other Features : | Weight | 303g (Typ.) | Surface | Antiglare |
Mounting : | Side mounting holes (4-M2) on left, right bezel, Face mounting holes (4-Φ3.4) on left, right bezel |
3. TIANMAP0840XGF1MA00 Optical Details
Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) (ms) |
Color Performance : | Chromaticity | Wx:0.307; Wy:0.333 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6771K | White Uniformity | 1.18/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 94% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 74% coverage |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Performance : | 3D Technology | Outdoor Visibility | Reflectance |
- | Sunlight Readable | - |
4. TIANMA P0840XGF1MA00 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 2.42W (Typ.) |
Time Controller (T-CON) : | Built-in NT51625TTH*2 + NT52602TTH*1 |
5. TIANMA P0840XGF1MA00 Backlight Details
Back-light Features: | Lamp Shape | 3strings | Lamp Type | WLED | Life Time | 100K(Typ.) (Hours) |
Replacement | - | Amount | 7S3P | Position | Edge light type |
Lamp Electrical : | Voltage Input | 22.4±2.1V | Current Input | 100/110mA (Typ./Max.) |
Consumption | 6.72W (Typ.) |
Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
JST | SM06B-SHLS-TF(LF)(SN) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-NNCAAC |
6. TIANMA P0840XGF1MA00 Interface Details
Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage |
|
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 310mA (Typ.) |
Consumption | 1.02W (Typ.) |
Interface Features : | Type | Connector | Position | - |
|
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
JAE | FI-SEB20P-HFE | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H |
7.TIANMA P0840XGF1MA00 Carton Details
Package Type | Package Type | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Inner box | 10 | 1 | 520×345×111 | N/A | 0.0199 |
Outer box | 20 | 2 | 544×365×250 | 10.95 | 0.0496 |
