15 inch 4-wire resistance screen amt9543is applicable to Industrial LCD screens

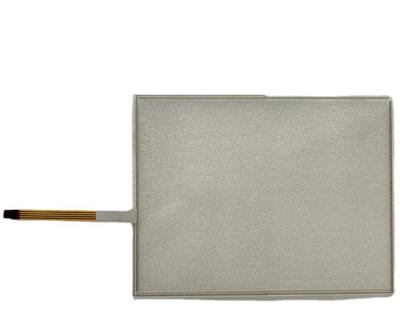

  • 15 inch 4-wire resistance screen amt9543is applicable to Industrial LCD screens
  • Model:AMT9543
  • Brand:AMT
  • Aximum:
  • Size:15inch
  • Maximum resolution supported:
  • Interface signal:
  • LCDinterface:
  • Operating Temp.:-10 ~ 60 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 15 inch 4-wire resistance screen amt9543
    Manufacturer brandTaiwan AMT
    modelamt9543
    Size15”
    Overall dimension325.45*249.25（H*V）mm
    visible area304.09*228.09（H*V）mm
    working temperature-10 ~ 60  °C
    Storage temperature-40 ~ 80  °C
    Click life>1 million times (single point)
    Transmittance>80%
    Fogging degree<13%
    working voltage5V-12V
    Environmental testing
    Storage temperature: - 40 ℃ ~ 80 ℃
    Operating temperature: - 20 ℃ ~ 70 ℃
    transmission speed19200baud
    Impedance characteristics300-600&Omega;
    Linear error<1.5%
    Novelty test method
    High temperature test: the test temperature is 80 ℃, store it for 288 hours, take it out and store it at room temperature for 24 hours;

    Low temperature test: the test temperature is - 40 ℃, stored for 288 hours, taken out and stored at room temperature for 24 hours;

    High temperature and humidity test: the test temperature is 60 ℃, the humidity is 90rh, stored for 288 hours, taken out and stored at room temperature for 24 hours;

    Cold and hot shock test: the test temperature is - 40 ℃ and 80 ℃, the storage time is 30 minutes respectively, the cycle is 10 times, and then it is stored at room temperature for 24 hours;

    Durability test: r8mm / 250g force / single point tapping the touch panel twice per second for more than 10 million times;

    Writing test: r0.8mm/250g force, draw back 100000 times on a straight line of one inch
    RemarksIt is applicable to all kinds of 15 inch Industrial LCD screens, such as Qimei 15 inch g150xge-l04, etc



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for AMT9543. Please include your application and required quantity so we can confirm the applicable revision.

Request AMT9543 Datasheet
