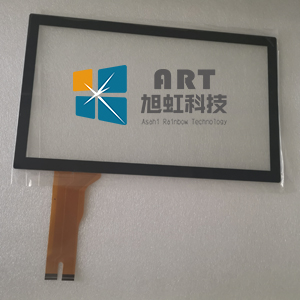

XH10558B-GDB-A2 10.1-Inch Capacitive Touch Panel
The existing product listing identifies XH10558B-GDB-A2 as a 10.1-inch capacitive touch panel. The information below is retained from that listing and has not been verified against a manufacturer datasheet or approved drawing. Confirm the specifications for the supplied revision before ordering or integration.
Listed Mechanical Details
| Model | XH10558B-GDB-A2 |
|---|
| Nominal Size | 10.1 inches |
|---|
| Listed Aspect Ratio | 16:10 |
|---|
| Touch Type | Capacitive touch panel |
|---|
| Outline Dimensions (W × H) | 243.70 × 167.70 mm; tolerance not provided |
|---|
| Viewing Area (W × H) | 217.96 × 136.60 mm; tolerance not provided |
|---|
| Panel Structure | G+G, as listed |
|---|
| Surface Hardness | ≥6H, as listed; test conditions not provided |
|---|
Listed Controller and Interface
| Controller IC | Goodix GT9271 |
|---|
| Touch Points | 10, as listed |
|---|
| Interface | IIC (I2C), as listed |
|---|
| Supply Voltage | 5.0 V DC, as listed; confirm the panel supply and host signal levels separately before connection |
|---|
| FPC / IC Assembly | COF, as listed |
|---|
Specifications Requiring Confirmation
Operating and storage temperature limits, humidity limits, total thickness, optical transmittance, linearity, connector pinout, FPC exit orientation and dimensional tolerances are not confirmed. Request an approved drawing and electrical specification for the supplied revision. Do not infer connector wiring or voltage compatibility from the controller name alone.
Contact us to confirm current availability, documentation and a quotation for XH10558B-GDB-A2. Include your application, host interface and required quantity.
