Your location:Home > Products > Industrial Touch Screens > Capacitive touch >

XH10562A-KDB-C3

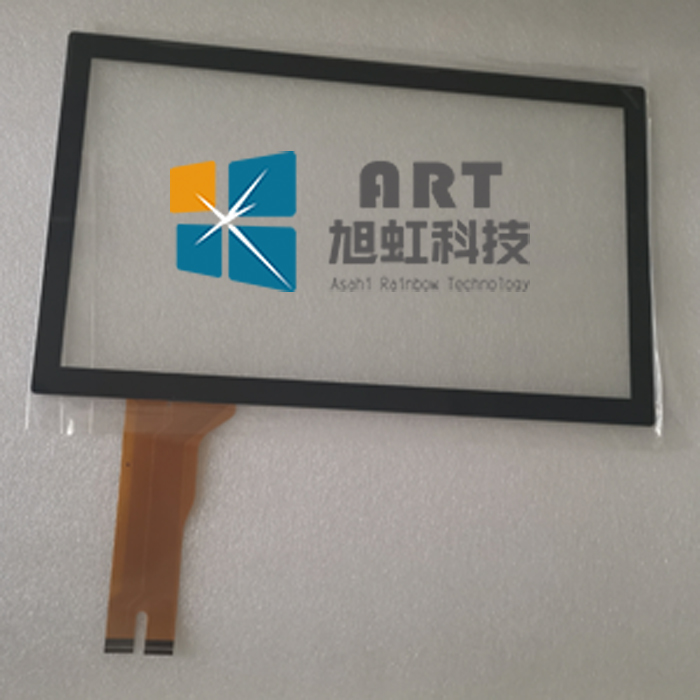

  • XH10562A-KDB-C3
  • Model:XH10562A-KDB-C3
  • Brand:Capacitive touch
  • Aximum:16:10
  • Size:10.1inch
  • Maximum resolution supported:227.76 * 149.00mm
  • Interface signal:USB / IIC
  • LCDinterface:217.96 * 136.60mm
  • Operating Temp.:
  • Production State:ILITEK 2511 FPC:COF Side width the commonly used lines for FPC: ultra narrow side, bottom side left lines
  • Click For Price
  • Technical Parameters
  • Model No.XH10562A-KDB-C3
    Screen Size10.1inch
    Aspect Ratio16:10
    Touch typeCapacitive touchscreen
    Touch point10
    Outline Dimensional227.76*149.00mm
    View Area217.96*136.60mm
    Panel structureG+G
    Temperature range-20℃～+70℃
    Humidity range-30℃～+80℃
    Working voltageDC5.0V
    Linear equation≤2%
    Optical Characteristics≥87%
    Surface Hardness≥ 6H
    interfaceUSB/IIC
    ICILITEK 2511
    Side width commonly used lines for FPCUltra narrow side, bottom side left thread



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for XH10562A-KDB-C3. Please include your application and required quantity so we can confirm the applicable revision.

Request XH10562A-KDB-C3 Datasheet
