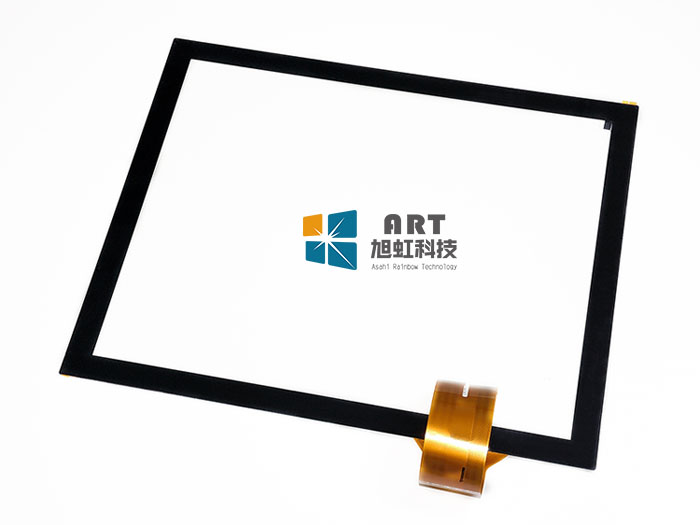

XH12020A-GDA-A2 12.1-Inch Capacitive Touch Panel
The existing product listing identifies XH12020A-GDA-A2 as a 12.1-inch capacitive touch panel. The details below are retained from that listing and have not been verified against a manufacturer datasheet or approved drawing. Confirm specifications for the supplied revision before ordering or integration.
Listed Mechanical Details
| Model | XH12020A-GDA-A2 |
|---|
| Nominal Size | 12.1 inches |
|---|
| Listed Aspect Ratio | 4:3 |
|---|
| Touch Type | Capacitive touch panel |
|---|
| Outline Dimensions (W × H) | 277.50 × 221.50 mm; tolerance not provided |
|---|
| Viewing Area (W × H) | 248.60 × 187.00 mm; tolerance not provided |
|---|
| Panel Structure | G+G, as listed |
|---|
| Surface Hardness | ≥6H, as listed; test conditions not provided |
|---|
Listed Controller and Interface
| Controller IC | ILITEK 2510, as listed |
|---|
| Touch Points | 10, as listed |
|---|
| Interface | USB / IIC (I2C), as listed; confirm the interface available on the supplied configuration |
|---|
| Supply Voltage | 5.0 V DC, as listed; confirm panel supply and host signal levels separately before connection |
|---|
| Listed Assembly Description | COB+PCB; confirm the construction in the approved drawing |
|---|
Specifications Requiring Confirmation
Operating and storage temperature limits, humidity limits, total thickness, optical transmittance, linearity, connector pinout, FPC exit orientation and dimensional tolerances are not confirmed. Request the current drawing and electrical specification for the supplied revision. The legacy USB / IIC entry does not establish that both interfaces are simultaneously available.
Contact us to confirm documentation, current availability and a quotation for XH12020A-GDA-A2. Include your application, required host interface and quantity.
