  • GP-084F-5M-NB04B Gtouch 8.4 "5-wire resistive touch screen
  • GP-084F-5M-NB04B Gtouch 8.4 "5-wire resistive touch screen
  • Model:GP-084F-5M-NB04B
  • Brand:gtouch
  • Aximum:5-wire resistive touch screen
  • Size:8.4 inches
  • Maximum resolution supported:
  • Interface signal:ur / LR / SG / UL / ll
  • LCDinterface:
  • Operating Temp.: - 10 ~ 70 ° C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1、Gtouch 8.4 "5-wire resistive touch screen gp-084f-5m-nb04b
    This specification is applicable to five wire analog resistive touch screen
    1. Even if the surface is scratched and damaged, if the ITO glass is not damaged. Still working normally;
    2. High temperature manufacturing process at 500 ℃;
    3. The warranty period is 2 years of normal operation and the number of contacts is 10000000;
    4. Provide high transparency touch screen (more than 80%), even low brightness display is very clear;
    5. It can be customized in various sizes from 5 to 26 inches according to customers' requirements.
    6. It is designed to be activated by pressure from a finger or stylus.
    7. It's easy to install on different brands of monitors.
    2、GP-084F-5M-NB04Bcharacteristic
    TypeFive wire analog resistance type
    Operation modeBrush or hand touch
    LinksFFC

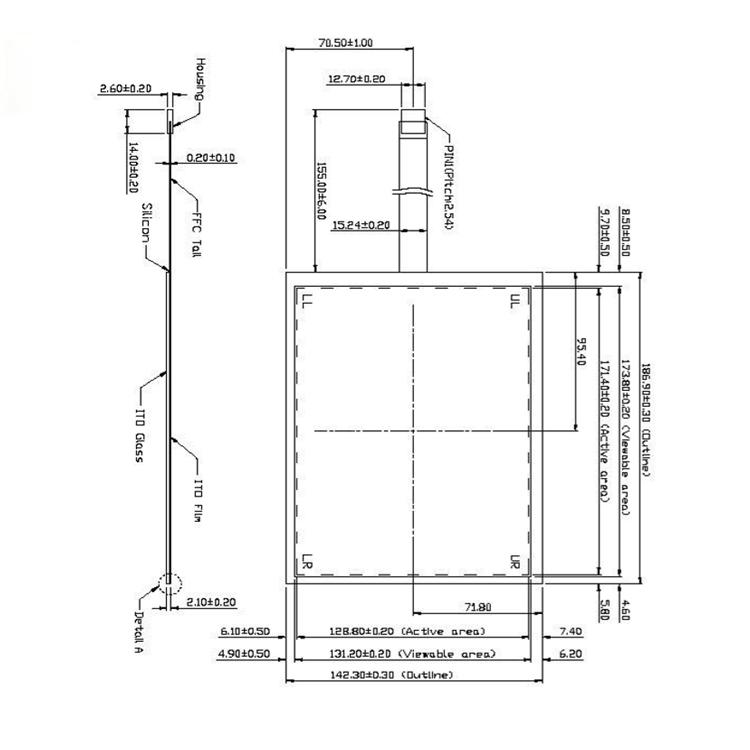

    3、GP-084F-5M-NB04BGeneral specifications
    Frame size186.9 X 142.3mm ±0.3mm
    Viewable area173.8 X 131.2mm ±0.2mm
    Action area171.4 X 128.8mm ±0.2mm
    Overall Depth2.10mm ± 0.20mm
    Length of outgoing line155.00mm±6.00mm
    4、GP-084F-5M-NB04BEnvironmental characteristics
    Operating temperature-10 ° C~ +70 ° C
    Storage temperature-40 ° C~ +80 ° C
    Operating humidity20%RH ~80%RH
    Storage humidity20%RH ~ 90%RH
    Note: the above environment is atmospheric pressure
    5、GP-084F-5M-NB04BOptical characteristics
    Light transmittance80% ±3% (Measured by BYK-Gardner, 550nm , ASTM D1003)
    Haze degree8% ± 3% (Measured by BYK-Gardner, ASTM D1003)
    6、GP-084F-5M-NB04BElectronic characteristics

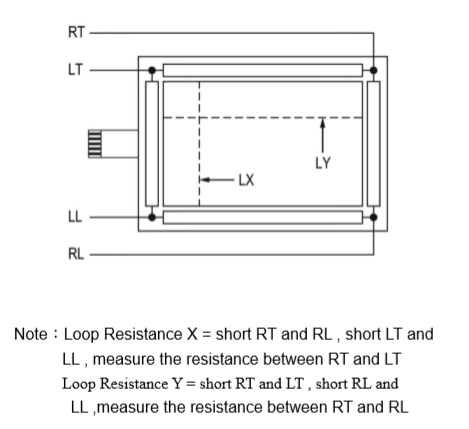

    Loop impedanceX:20~500Ω, Y:20~500Ω
    linearX≦1.5%, Y≦1.5%
    Actuation time≦15ms
    Insulation impedance≧20MΩ;/25V(DC)
    Withstand voltageDC50V/No movement damage in 60 seconds




    Gp-084f-5m-nb04b specification download link address: https://pan.baidu.com/s/1N-FoewaOSXY142Q-79d_ Kg extraction code: cy92 after copying this content, open Baidu network disk mobile app, operation is more convenient
