GP-150F-5M-NB04B 15-Inch 5-Wire Resistive Touch Panel

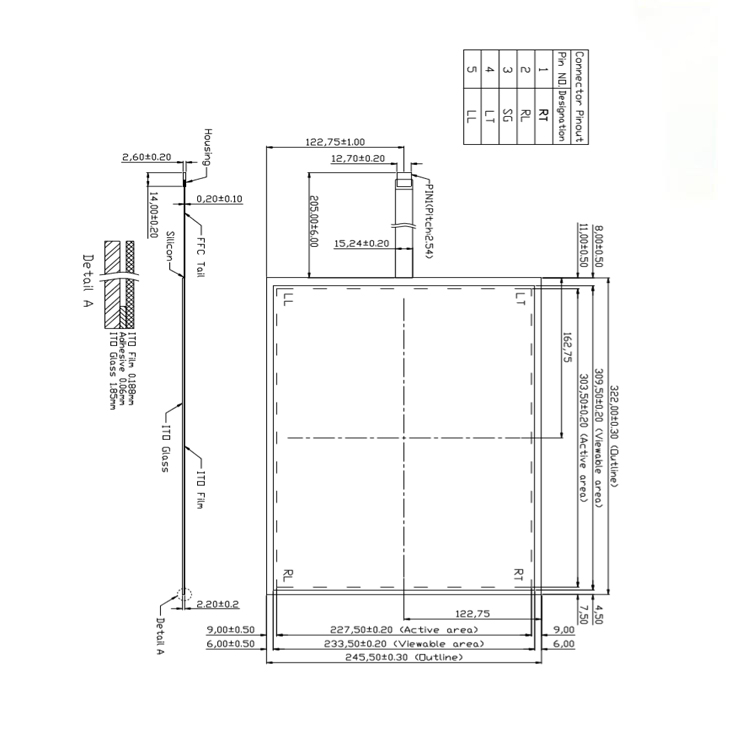

The GTOUCH GP-150F-5M-NB04B is a 15-inch five-wire analog resistive touch panel for finger or stylus input. The panel uses an FFC connection. The specifications below are based on the supplied product specification and its mechanical drawing, revision 01, dated October 25, 2012. Confirm the current revision and availability before ordering.
Mechanical Specifications
| Model | GP-150F-5M-NB04B |
|---|
| Brand | GTOUCH |
|---|
| Nominal Size | 15 inches |
|---|
| Touch Technology | Five-wire analog resistive |
|---|
| Input Method | Finger or stylus |
|---|
| Outline Dimensions (W × H) | 322.00 × 245.50 mm; tolerance ±0.30 mm for each dimension |
|---|
| Viewable Area (W × H) | 309.50 × 233.50 mm; tolerance ±0.20 mm for each dimension |
|---|
| Active Area (W × H) | 303.50 × 227.50 mm; tolerance ±0.20 mm for each dimension |
|---|
| Panel Thickness | 2.20 ±0.20 mm, as marked on the drawing; check connector housing clearance separately |
|---|
| Connector | FFC connection |
|---|
Environmental Specifications
| Operating Temperature | -10 to +70 °C |
|---|
| Operating Humidity | 20% to 85% RH, non-condensing |
|---|
| Storage Temperature | -40 to +80 °C |
|---|
| Storage Humidity | 10% to 90% RH, non-condensing |
|---|
The environmental conditions in the supplied specification apply at one atmosphere.
Electrical and Surface Specifications

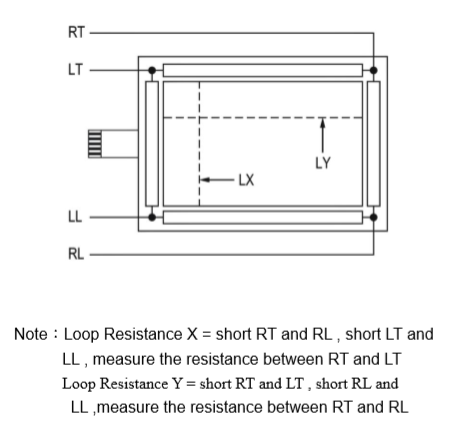

| Loop Resistance | X: 20 to 500 Ω; Y: 20 to 500 Ω, using the specification's loop-resistance test connections |
|---|
| Linearity | X ≤1.5%; Y ≤1.5%, under the stated inspection conditions |
|---|
| Contact Chattering | ≤15 ms |
|---|
| Insulation Resistance | ≥20 MΩ at 25 V DC |
|---|
| Surface Hardness | ≥3H; pencil test at 1 N and 45° |
|---|
Panel Connector Pin Assignment
| Pin | Designation |
|---|
| 1 | RT |
| 2 | RL |
| 3 | SG |
| 4 | LT |
| 5 | LL |
This is the five-wire panel connection, not a USB pin assignment. Verify pin numbering and connector orientation against the approved drawing. Confirm a compatible controller and its host interface separately; an included USB controller is not established by this specification.
Integration and Selection
Check outline dimensions, viewable area, active area, connector position and enclosure clearance before integration. The supplied specification calls for at least 0.3 mm clearance between the touch panel and display module. Avoid enclosure pressure on the touch surface, excessive strain on the tail and direct bonding of the top ITO film to the enclosure.
Contact us for the current GP-150F-5M-NB04B specification, controller options, availability and a quotation. Include your display model, host interface and required quantity. Confirm current commercial warranty terms separately.
