GP-156F-5M-NB02B 15.6-Inch 5-Wire Resistive Touch Panel
The GTOUCH GP-156F-5M-NB02B is a five-wire analog resistive touch panel for finger or stylus input, with an FFC connection. The specifications below are based on the supplied V1.0 specification dated September 26, 2013 and its mechanical drawing dated April 2, 2013. Confirm the current revision and availability before ordering.
Mechanical Specifications

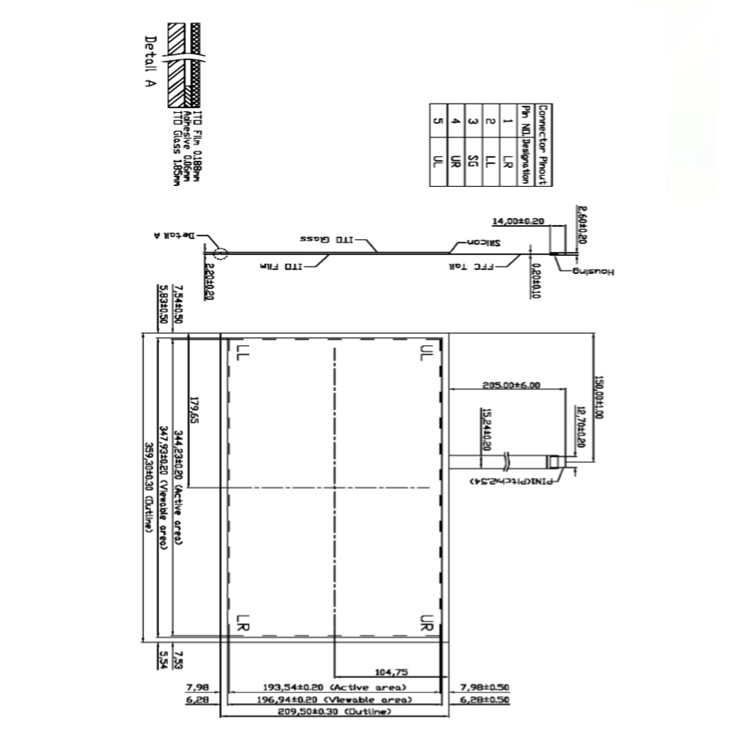

| Model | GP-156F-5M-NB02B |
|---|
| Brand | GTOUCH |
|---|
| Nominal Size | 15.6 inches |
|---|
| Touch Technology | Five-wire analog resistive |
|---|
| Input Method | Finger or stylus |
|---|
| Outline Dimensions (W × H) | 359.30 × 209.50 mm; tolerance ±0.30 mm for each dimension |
|---|
| Viewable Area (W × H) | 347.93 × 196.94 mm; tolerance ±0.20 mm for each dimension |
|---|
| Active Area (W × H) | 344.23 × 193.54 mm; tolerance ±0.20 mm for each dimension, per the mechanical drawing |
|---|
| Panel Thickness | 2.20 ±0.20 mm; check connector housing clearance separately |
|---|
| Tail Length | 205.00 ±6.00 mm, per the drawing |
|---|
| Panel Connection | Five-wire / FFC |
|---|
The general specification table contains a malformed active-area width entry. The active-area dimensions above follow the mechanical drawing; confirm these dimensions against the approved production drawing before tooling.
Environmental Specifications
| Operating Temperature | -10 to +60 °C |
|---|
| Operating Humidity | 20% to 85% RH, non-condensing |
|---|
| Storage Temperature | -20 to +70 °C |
|---|
| Storage Humidity | 10% to 90% RH, non-condensing |
|---|
These environmental conditions apply at one atmosphere, as stated in the specification.
Electrical and Surface Specifications
| Loop Resistance | X: 20 to 500 Ω; Y: 20 to 500 Ω, under the specified test connections |
|---|
| Linearity | X ≤1.5%; Y ≤1.5%, under the specified inspection conditions |
|---|
| Contact Chattering | ≤15 ms |
|---|
| Insulation Resistance | ≥20 MΩ at 25 V DC |
|---|
| Surface Hardness | ≥3H; pencil test at 1 N and 45° |
|---|
Panel Connector Pin Assignment
| Pin | Designation |
|---|
| 1 | LR |
| 2 | LL |
| 3 | SG |
| 4 | UR |
| 5 | UL |
Pin designations follow this model's mechanical drawing. Verify orientation and numbering before connection. This is not a USB pin assignment; a compatible controller and its host interface must be confirmed separately.
Integration and Selection
Check outline dimensions, active area, connector position and installation clearance before integration. Retain at least 0.3 mm clearance between the panel and display module as required by the specification. Avoid excessive force on the panel or tail.
Contact us for the current GP-156F-5M-NB02B drawing, controller options, availability and a quotation. Include your display model, host interface and required quantity. Confirm current commercial warranty terms separately.
