| Project | describe |

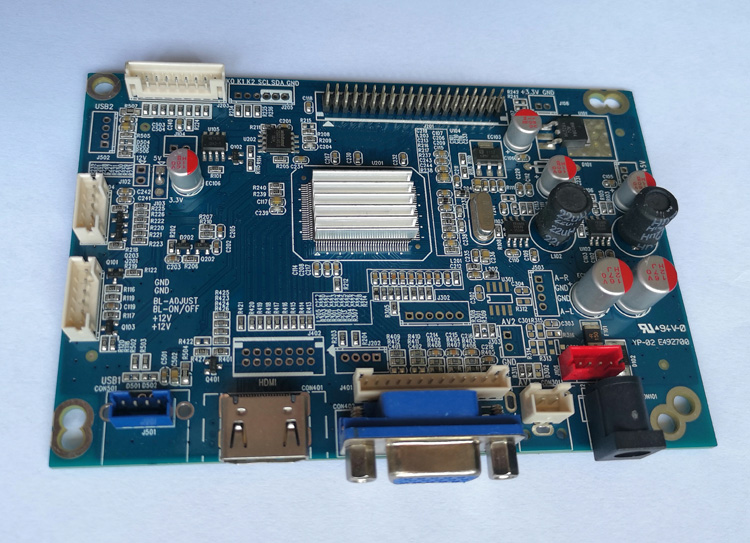

| Product name | DM37F |
| Chip solution | MSTAR series |
| Support maximum resolution | 1920*1200 |
| Support size | ~82“ |
| Interface signal | Two channels of CVBS signal input, one channel of VGA, one channel of HDMI / DVI, one channel of YPbPr, two channels of USB (can read high-definition video pictures), one channel of CVBS output |
| Interface signal | +12V single power supply, more than 48W power adapter is recommended |
| function | Support multi language, support full hd 1080p decoding, support full color boot screen (picture, video), support breakpoint memory, support plug-in, support inverted screen; Support flip function, support factory mode control signal output |
| LCD interface | LVDS（6/8/10bit）2ch |
| Storage conditions | Temperature - 40 ℃ to 150 ℃; Relative humidity 5% to 85% |
| Working conditions | Temperature - 25 ℃ to 85 ℃; Relative humidity 20% to 80% |
| Size | 123*83*15mm |
| Applicable occasions | Industrial LCD driver board, vehicle display driver board |
