Project | describe |

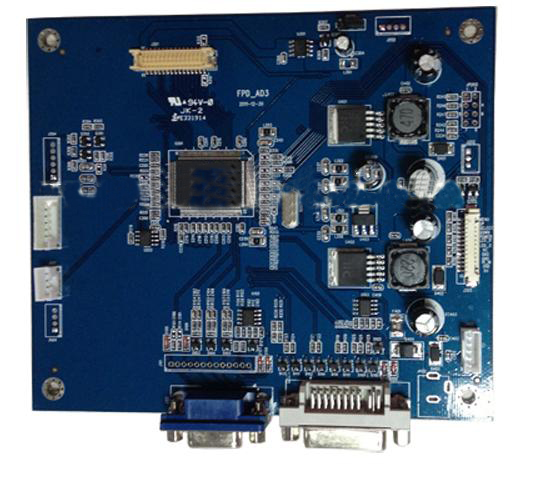

Product name | FPD-AD3 |
Chip solution | Genesise series |
Support maximum resolution | 1680*1050 |
Support size | ~42“ |
Interface signal | 1-way VGA, 1-way DVI input |
Input power | +12V single power supply, it is recommended to use 54W or above power adapter |
function | Medical LCD driver board: it can support automatic sensitivity, black and white display, multi language, DICOM brightness control, multi-level gamma setting, and excellent gray-scale performance. CGA, EGA signal support. |
LCD interface | LVDS |
Storage conditions | The temperature is - 40 ℃ to 80 ℃; Relative humidity 5% to 85% |
Working conditions | Temperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80% |
Size | 140*120*16mm |
Applicable occasions | Industrial control display, special occasions display, medical LCD driver board, LCD control board. |
