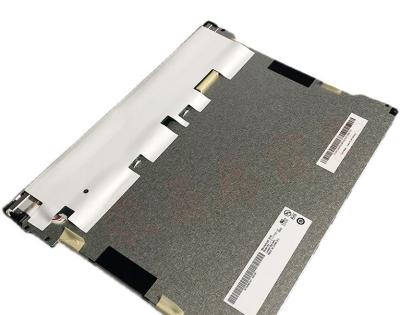

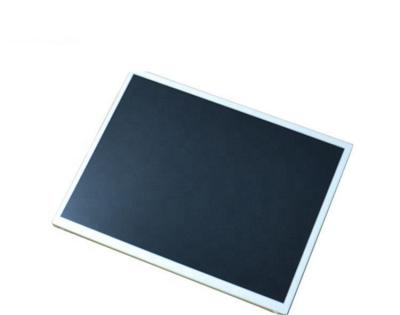

AUO G121XTN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121XTN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 12.1inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F,180°Reverse,Matte,6/8 bit | |||
AUO G121XTN01.0 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 25/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Variation | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121XTN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(2)*768(2), XGA | Arrangement | RGBW Rectangle | |||
| Dot Pitch(W*H) | 0.120*0.120 mm | Pixel Pitch(W×H) | 0.240*0.240 mm [105PPI] | ||||
| Physical Size : | Active Viewing(mm) | 245.76(W)*184.32(H) mm | Outline Dim.(mm) | 279(W)*209(H) mm | |||
| Bezel Area(mm) | 250.8(W)*188.4(H) mm | Depth(mm) | 9.0 (Max.) mm | ||||
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | ||||
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | ||||
| Mounting : | Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel | ||||||
| Other Spec : | Weight | 495g (Max.) | Treatment | Antiglare, Hard coating (3H) | |||
AUO G121XTN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 5.31W (Typ.) |
AUO G121XTN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 590/710mA (Typ./Max.) | ||
| Consumption | 1.95/2.34W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | Rear | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080B | |
AUO G121XTN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S3P | Position | Edge light type (Bottom side) | |||||||
| Exchange | Replaceable | Lamp Shape | 3 strings | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Lamp Electrical : | Input Voltage | 19.2/21.6V (Typ./Max.) | Input Current | 50mA (Typ.) | |||||||||
| Consumption | 2.88/3.24W (Typ./Max.) | ||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||||
| E&T | 3808K-F05N-12R | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 280mA (Typ.) | |||||||||
| Consumption | 3.36/4.2W (Typ./Max.) | ||||||||||||
AUO G121XTN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 14.8 Kgs | 570*320*420 mm mm (L*W*H) |
