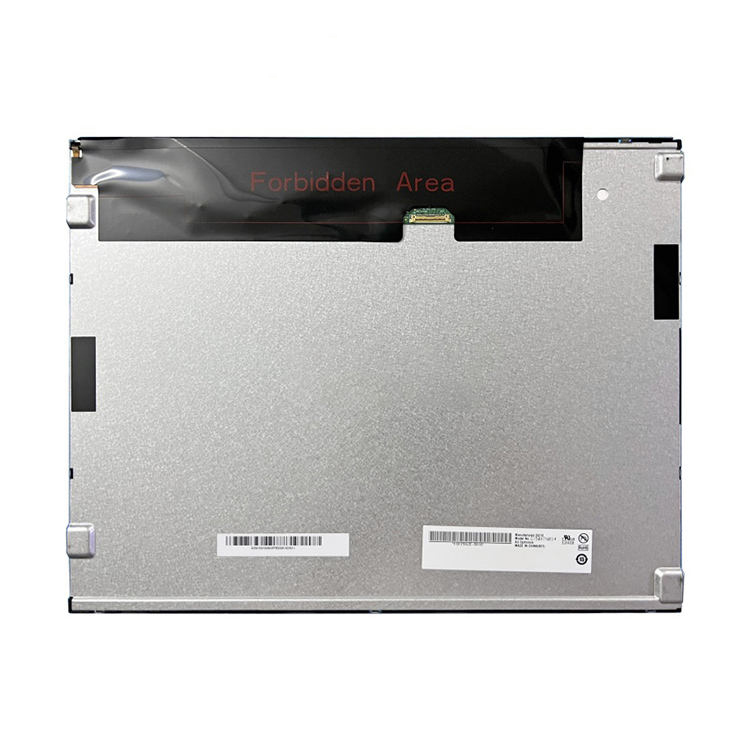

G150XTN03.5

Your location:Home > Products > AUO LCD screen > 15inch >
  • G150XTN03.5
  • G150XTN03.5
  • Model:G150XTN03.5
  • Brand:AUO
  • Size:15.0inch
  • Resolution:1024×768
  • Brightness:350cd/m²(Typ.)
  • Perspective:80/80/70/80 (Typ.)
  • Interface:LVDS
  • Operating temperature:0 ~ 65 °C
  • Current production status:In Production
  • Technical Parameters
  • AUO  G150XTN03.5 Application Details
    Basic Detail : Manufacturer AUO Model Name G150XTN03.5
    Panel Type a-Si TFT-LCD , LCM Model Alias
    Panel Size 15inch Designed For Idustrial
    Maximum Ratings : OP Temperature 0 ~ 65°C ST Temperature -20 ~ 65°C
    RoHS RoHS Vibration Level 1.5G (14.7 m/s²)
    Features : WLED Backlight,Life>=50K hours,With LED Driver, 6/8 bit,Matte

    AUO  G150XTN03.5 Optical Details
    Basic Information : Luminance 350cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
    Good View at - Response Speed 5.7/2.3 (Typ.)(Tr/Td)
    Viewing Angle 80/80/70/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature 6485K White Variation 1.25/1.33 (Typ./Max.)(9 points)
    1931 Color Gamlt : NTSC Ratio 60% sRGB 84% coverage
    Adobe RGB 63% coverage DCI-P3 63% coverage
    Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO  G150XTN03.5 Mechanical Details
    Pixel Features : Number of Pixel 1024(RGB)×768 [XGA] Arrangement RGB Vertical Stripe
    Dot Pitch(W×H) 0.099×0.297 mm Pixel Pitch(W×H) 0.297×0.297 mm  [85PPI]
    Physical Size : Active Viewing(mm) 304.128(W)×228.096(H) mm Outline Dim.(mm) 326.5(W)×253.5(H) mm
    Bezel Area(mm) 313.55(W)×237.25(H) mm Depth(mm) 10.0 (Max.) mm
    Outline Features : Form Style Flat Rectangle Outline Shape
    Aspect Ratio 4:3 (H:V) Orientation Landscape type
    Mounting : Side mounting holes (4-M3) on left, right bezel
    Other Spec : Weight


    1.20Kgs (Max.) Treatment Antiglare, Hard coating (3H)

    AUO  G150XTN03.5 Electronics Details
    Refresh Rate : 60Hz
    Reverse Scan : No
    Total Consumption : 7.5W (Typ.)

    AUO   G150XTN03.5 Interface Detail
    Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 450/750mA (Typ./Max.)
    Consumption 1.5/2.5W (Typ./Max.) Signal Interface eDP (1 Lane), eDP1.2
    Interface Features : Position - Type LVDS (1 ch, 6/8-bit)
    Interface Detail : Brand Model Pitch Pins Quantity Pin Configuration
    STM MSB240420HD 1.25mm 20 pins 1 pcs

    AUO    G150XTN03.5 Backlight Details
    Lamp Features : Lamp Type WLED Quantity - Position Edge light type (Bottom side)
    Exchange No Lamp Shape - Lamp Life 50K(Min.) (Hours)
    Interface Features : Position - Physical Type Connector
    Interface Detail : Brand Model Pitch Pins Quantity Pin Configuration
    E&T 3808K-F05N-02R 1.25 mm 5 pins 1 pcs
    Backlight Driver : With LED Driver
    Driver Electrical : Voltage Supply 12.0±1.2V Current Supply 0.735A (Typ.)
    Consumption 4.5/5.0W (Typ./Max.)

    AUO   G150XTN03.5 Packing Details
    Package Box : Quantity Weight Box Size
    14 pcs / box 16.5 Kgs 430×370×350 mm (L×W×H)
