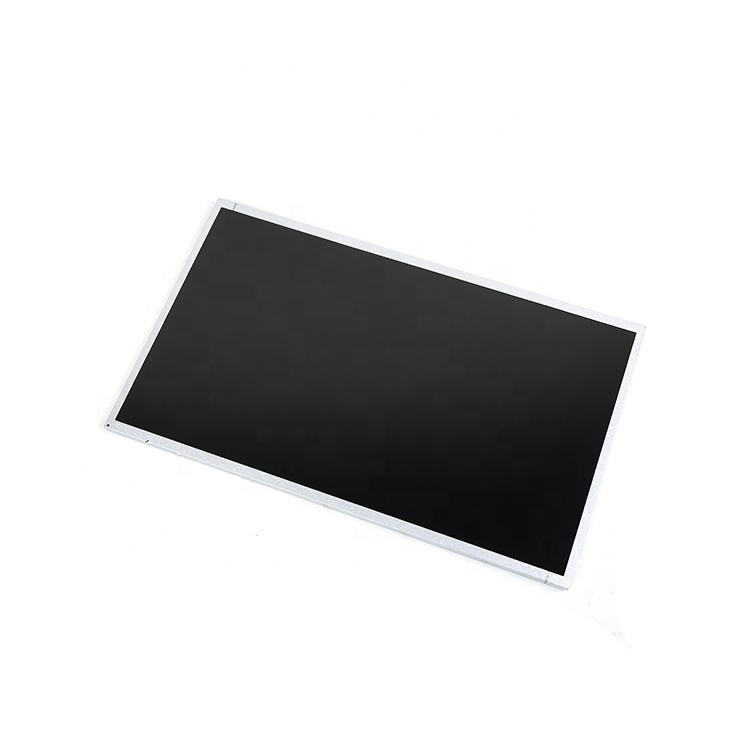

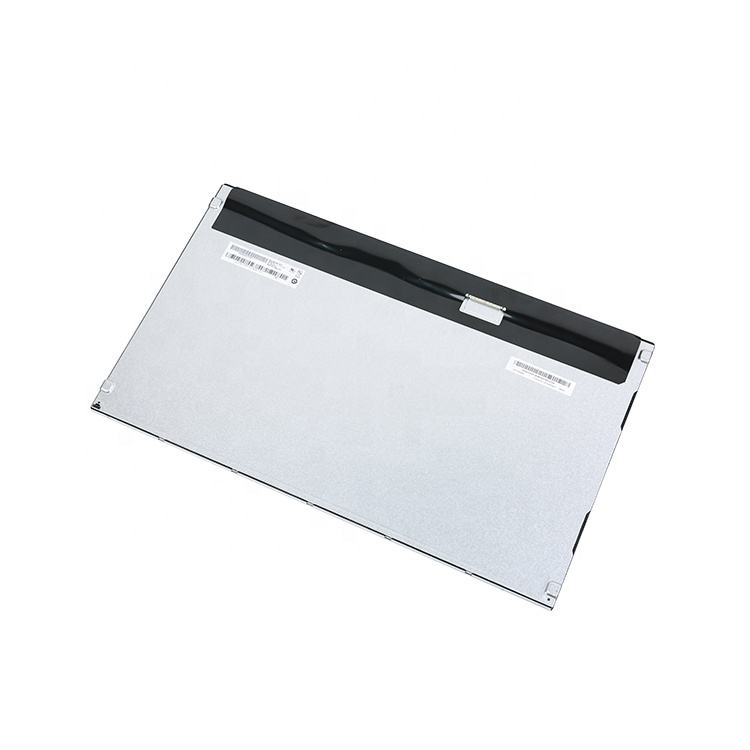

AUO T215HVN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | T215HVN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 21.5” | Designed For | Desktop Monitor,TV Sets | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight, Matte, Upside I/F | |||
AUO T215HVN01.1 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Typ.) (Typ.) | Contrast Ratio | 3000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/5(Typ.)(Tr/Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | VA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO T215HVN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.08275*0.24825 mm (H*V) | Pixel Pitch(mm) | 0.24825*0.24825 mm (H*V) [102PPI] | |
| Physical Size : | Active Viewing(mm) | 476.64*268.11 mm (H*V) | Outline Dim.(mm) | 495.6*292.2 mm (H*V) |
| Bezel Area (mm) | 479.84*271.31 mm (H*V) | Outline Depth | 8.6/11.1 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.67Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO T215HVN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 14.3W (Typ.) |
AUO T215HVN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.62/0.74A (Typ./Max.) | ||||
| Consumption | 3.1/3.7W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||||
| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| STM | MSBKT2407P30HB | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |||
AUO T215HVN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 15S4P | Position | Edge light type (Bottom side) | |||||
| Exchange | - | Lamp Shape | 4strings | Lamp Life | 30K(Min.) Hours | ||||||
| Lamp Electrical : | Input Voltage | 46.5/51V (Typ./Max.) | Input Current | 65/72mA (Typ./Max.) | |||||||
| Consumption | 11.2/12.2W (Typ./Max.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||||
| E&T | 3707K-S06N-21R | 1 pcs | 6 pins | 1.0mm | BLE-6PINS-CCAACC | ||||||
| Backlight Driver : | No | ||||||||||
AUO T215HVN01.1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 13 pcs / box | 25.7 Kgs | 557*345*375 mm (L*W*H) |
