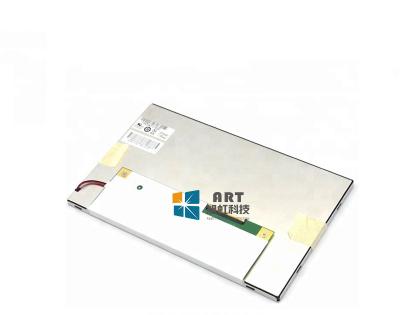

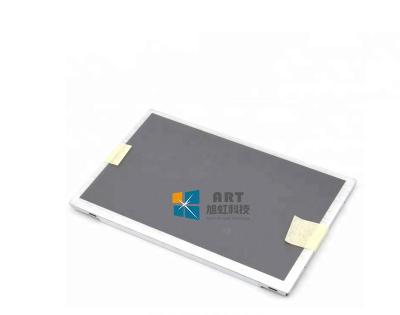

AUO C080EAN01.3 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
C080EAN01.3 |
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
Automotive Display |
| Panel Size |
8.0” |
Designed For |
Automotive Display,Outdoor High Brightness |
| Maximum Ratings : |
OP Temperature |
-30 ~ 85 °C |
ST Temperature |
-40 ~ 95 °C |
| RoHS |
RoHS |
Vibration Level |
2.9G (28.4 m/s²) |
| Features : |
Wide Temperature,3G Vibration, U/D/L/R Reverse,WLED Backlight,Matte |
AUO C080EAN01.3 Optical Details
| Basic Information : |
Luminance |
400cd/m² (Typ.) |
Contrast Ratio |
1000 : 1 (Typ.) (Transmissive) |
| Good View at |
Symmetry |
Response Speed |
20/20 (Typ.)(Tr+Td) (ms) |
| Viewing Angle |
80/80/80/80 (Typ.)(CR≥10) |
Operating Mode |
AHVA, Normally Black, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.307; Wy:0.327 |
Display Colors |
16.7M (8-bit) |
| Color Temperature |
6835K |
White Variation |
1.25 (Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
72% |
sRGB |
97% coverage |
| Adobe RGB |
74% coverage |
DCI-P3 |
74% coverage |
| Rec.2020 |
54% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO C080EAN01.3 Mechanical Details
| Pixel Features : |
Number of Pixel |
1280(RGB)×720 [WXGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.046×0.138 mm (H×V) |
Pixel Pitch(mm) |
0.138×0.138 mm (H×V) [184PPI] |
| Physical Size : |
Active Viewing(mm) |
176.64×99.36 mm (H×V) |
Bezel Area (mm) |
179.55×105.36 mm (H×V) |
| Outline Dim.(mm) |
186.5×117.12 mm (H×V) |
Depth(mm) |
7.2/10.0 (Typ./Max.) mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
16:9(H:V) |
Orientation |
Landscape type |
| Other Spec : |
Weight |
226±23g |
Treatment |
Antiglare |
AUO C080EAN01.3 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
Yes (U/D, L/R) |
AUO C080EAN01.3 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3/3.3V (Typ.)(VDD/AVDD) |
Current Supply |
30/350mA (Typ.)(IDD/AIDD) |
| Signal Voltage |
|
Signal Interface |
LVDS (1 ch, 8-bit) |
| Interface Features : |
Position |
- |
Physical Type |
FPC |
| Interface Detail : |
Brand
|
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| |
|
0.5mm |
40 pins |
1 pcs |
|
AUO C080EAN01.3 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
8S2P |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
2strings |
Lamp Life |
10K(Min.) (Hours) |
| Lamp Electrical : |
Input Voltage |
24.0/27.2V (Typ./Max.) |
Input Current |
80/85mA (Typ./Max.) |
| Consumption |
- |
| Interface Features : |
Position |
- |
Physical Type |
FPC |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| |
|
0.5mm |
8 pins |
1 pcs |
BLE-8PINS-AANNNNCC |
AUO C080EAN01.3 Carton Details
| Package Carton : |
Amount |
Net Weight |
Carton Size (L×W×H) |
| 36 pcs / box |
- |
600×353×210 mm |
