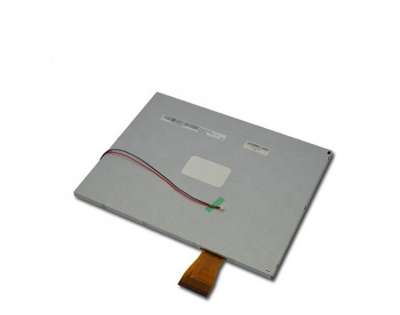

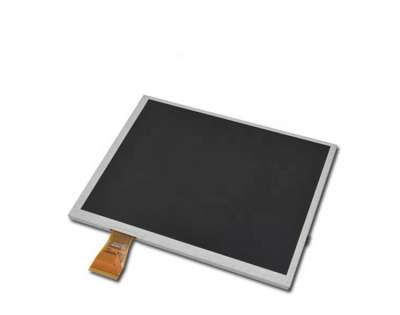

PC104TH603-B36-0-00 10.4-Inch 800x600 RGB TFT LCD
The PC104TH603-B36-0-00 is a 10.4-inch a-Si TFT LCD module with an 800 × 600 resolution, a parallel RGB interface and 300 cd/m² typical brightness. The TN, normally white display supports 16.7 million colors and a typical frame rate of 60 Hz.
The preliminary specification lists medical and industrial applications, including human-machine interfaces (HMI). Suitability for a particular device must be evaluated by the system designer.
General Specifications
| Brand | Xuhong |
|---|
| Model | PC104TH603-B36-0-00 |
|---|
| Display Size | 10.4 inches, diagonal |
|---|
| Panel Technology | a-Si TFT LCD |
|---|
| Resolution | 800 × RGB × 600 (SVGA) |
|---|
| Display Mode | TN, normally white, transmissive |
|---|
| Display Colors | 16.7M colors, 8-bit per color |
|---|
| Pixel Arrangement | RGB vertical stripe |
|---|
| Pixel Pitch | 0.264 × 0.264 mm |
|---|
| Surface Treatment | Anti-glare |
|---|
| Preferred Viewing Direction | 6 o'clock |
|---|
| Frame Rate | 60 Hz (Typ.) |
|---|
Optical Specifications
| Parameter | Specification |
|---|
| Brightness | 300 cd/m² (Typ.) |
|---|
| Contrast Ratio | 800:1 (Typ.); 600:1 (Min.) |
|---|
| Viewing Angles (Left / Right / Up / Down) | 70° / 70° / 60° / 70° (Typ., CR ≥ 10) |
|---|
| Response Time (Tr + Tf) | 30 ms (Typ.); 35 ms (Max.) |
|---|
| White Chromaticity (CIE 1931) | Wx: 0.284; Wy: 0.320 (Typ.) |
|---|
Optical values are specified under the datasheet's measurement conditions. Its optical note lists an LED test current of 20 mA, while the backlight driving table lists 240 mA. Confirm the relationship between these conditions with the supplier before using the values for design validation.
Mechanical Specifications
| Outline Dimensions (W × H) | 228.5 × 175.5 mm |
|---|
| Thickness | 6.0 ± 0.2 mm, as marked on the mechanical drawing |
|---|
| Active Area (W × H) | 211.2 × 158.4 mm |
|---|
| Bezel Viewing Area (W × H) | 214.3 × 162.6 mm |
|---|
| Aspect Ratio | 4:3 |
|---|
Refer to the latest approved mechanical drawing for mounting, connector position, clearances and dimensional tolerances.
Interface and LCD Power Supply
| Signal Interface | Parallel RGB / TTL |
|---|
| Signal Connection | 60-pin FPC, 0.5 mm pitch |
|---|
| LCD Supply Voltage (VCC) | 3.0 V (Min.); 3.3 V (Typ.); 3.6 V (Max.) |
|---|
| LCD Supply Current (IDD) | 180 mA (Min.); 280 mA (Typ.); 320 mA (Max.) |
|---|
The LCD supply values above are separate from the LED backlight supply. Follow the datasheet pin assignment, timing and power sequence. Confirm electrical test conditions with the supplier before finalizing the power design.
LED Backlight
| Backlight Type | White LED |
|---|
| Backlight Voltage | 9.6 V (Typ.) |
|---|
| Backlight Current | 240 mA (Typ.) |
|---|
| LED Lifetime | 30,000 hours (Min.), as listed in the preliminary specification |
|---|
| Backlight Connector | BHSR-02VS-1, 2-pin, as marked on the mechanical drawing |
|---|
Temperature Ratings
| Operating Temperature | -10 to +60 °C |
|---|
| Storage Temperature | -20 to +70 °C |
|---|
A104SN03 Replacement Evaluation
The preliminary specification lists compatibility with A104SN03. Confirm the exact original panel revision, pin assignment, voltage, timing and mechanical dimensions, then validate a sample before replacement. This reference does not establish drop-in compatibility with every A104SN03 revision or specifically with A104SN03 V1.
Datasheet and Ordering Information
These specifications are based on the PC104TH603-B36-0-00 preliminary specification, version A0, dated June 4, 2025. Typ. means typical, Min. means minimum and Max. means maximum. Specifications are subject to revision; request the latest approved datasheet before design or ordering.
Contact us for the latest datasheet, availability, quotation and sample evaluation. Please provide your required quantity, application and the exact original panel model if a replacement is needed.
