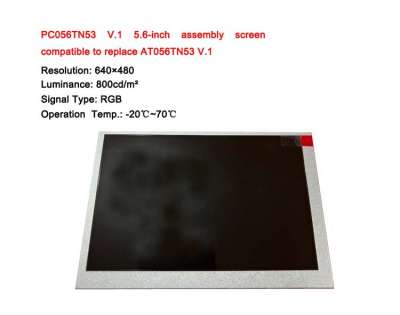

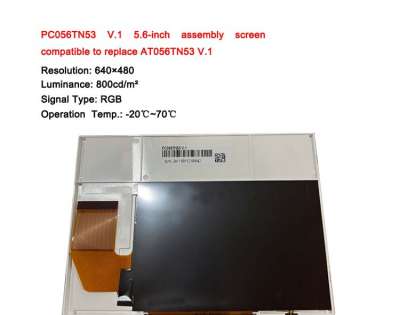

PC056TN53 V.1 5.6 inch 640 * 480TFT LCD module compatible with AT056TN53 V.1

Model:PC056TN53 V.1
Brand:Xuhong
Size:5.6inch
Resolution:640*480
Brightness:800cd/m2
Perspective:70/70/50/70
Interface:TTL
Operating Temp.:-20 ~ 70 °C
Production State:In Production

Click For Price

Technical Parameters

General Specifications

No.	Item	Specification
1	Lcd size	5.6 inch(Diagonal)
2	Driver element	a-Si TFT active matrix
3	Resolution	640 × (RGB) × 480
4	Display mode	Normally White, Transmissive
5	Dot pitch	0.0588(W) × 0.1764(H) mm
6	Active area	112.896 (W) × 84.672(H) mm
7	Module size	126.5(W) × 100(H) × 5.7(D) mm
8	Surface treatment	Anti-Glare
9	Color arrangement	RGB-stripe
10	Interface	Digital
11	Backlight Power consumption	1.90W(Typ.)
12	Panel Power consumption	0.66 W(Typ.)
13	Weight	83.1g(Typ.)
14	Viewing angle (CR≥10)	70/70/50/70
15	Contrast ratio	500：1
16	Luminance	800cd/m²
17	Operation Temperature	-20℃~70℃
18	Storage Temperature	-30℃~80℃
19	Signal Type	RGB

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for PC056TN53 V.1. Please include your application and required quantity so we can confirm the applicable revision.

Request PC056TN53 V.1 Datasheet
