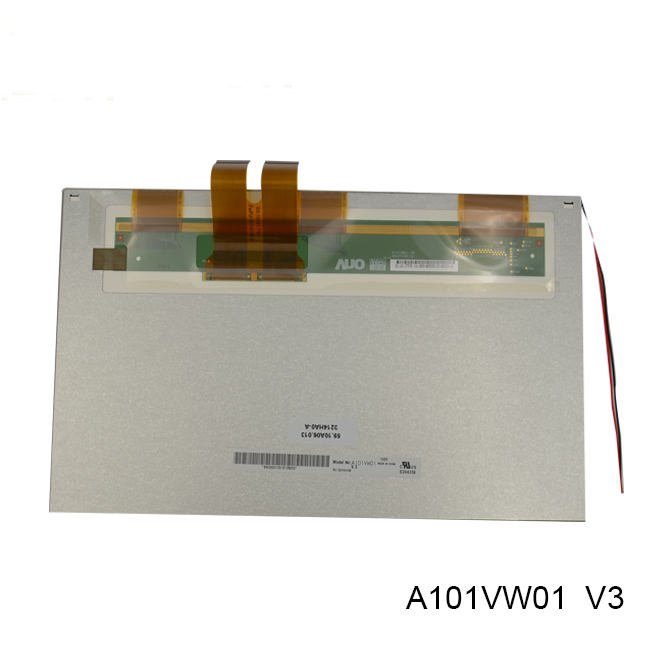

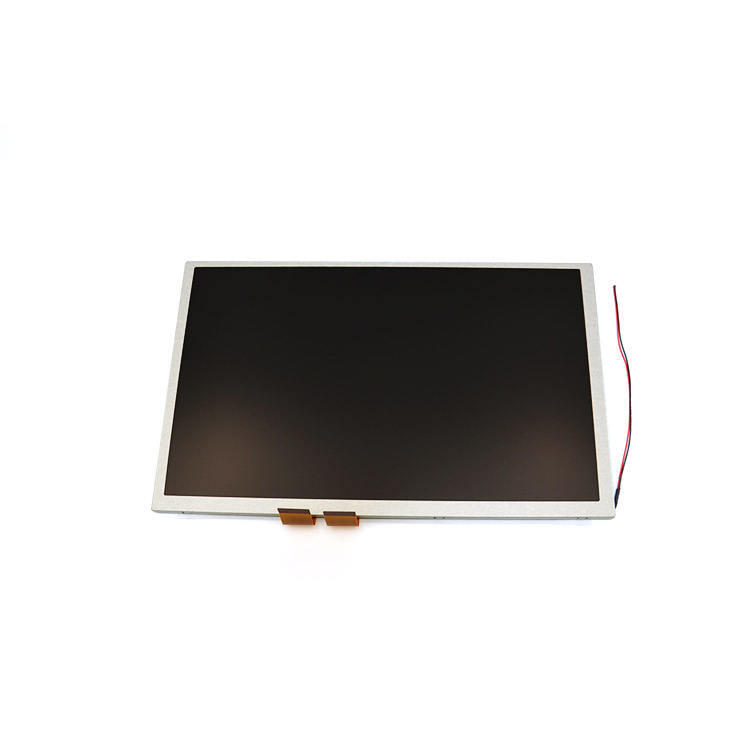

AUO A101VW01 V3 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | A101VW01 V3 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial，Digital Phote Frame，Portable DVD Player |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | WLED Backlight , U/D/L/R Reverse，Matte |
AUO A101VW01 V3 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 12/18 (Typ.)(Tr/Td) ms |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
AUO A101VW01 V3 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Horizontal Stripe |
| Dot Pitch(W*H) | 0.0915*0.2745 mm | Pixel Pitch | 0.2745*0.2745 mm (H*V) [92PPI] |
| Physical Size : | Active Viewing(mm) | 219.6*131.76 mm (H*V) | Outline Dim.(mm) | 235*145.9 mm (H*V) |
| Bezel Opening(mm) | 221.6*133.76 mm (H*V) | Overall Depth(mm) | 5.24 (Typ.) mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 15:9 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (6-M2) on left, right bezel |
| Other Detail : | Weight | 315g (Typ.) | Treatment | Antiglare |
AUO A101VW01 V3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 2.64W (Max.) |
| Time Controller (T-CON) : | Need external T-CON |
AUO A101VW01 V3 Interface Detail
| Signal Electrical : | Input Current | 3/32.5/0.231/0.244mA (Typ.)(ICC/IDD/IGH/IGL) | Input Voltage | 3.3/8.8/15/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) |
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
|
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 30pins | 2 pcs | |
AUO A101VW01 V3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S11P | Position | Edge light type (Bottom side) |
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) |
| Lamp Electrical : | Input Voltage | 12.0V (Typ.) | Current Supply | 220mA (Typ.) |
| Consumption | 2.64W (Max.) |
| Interface Features : | Position | - | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment |
| JOIN TEK | JT1025 | | 2 pins | 1 pcs | BLE-2PINS-AC |
| Backlight Driver : | No |
AUO A101VW01 V3 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 20pcs / box | 520*340*250 mm | 10.0Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for A101VW01 V3. Please include your application and required quantity so we can confirm the applicable revision.
