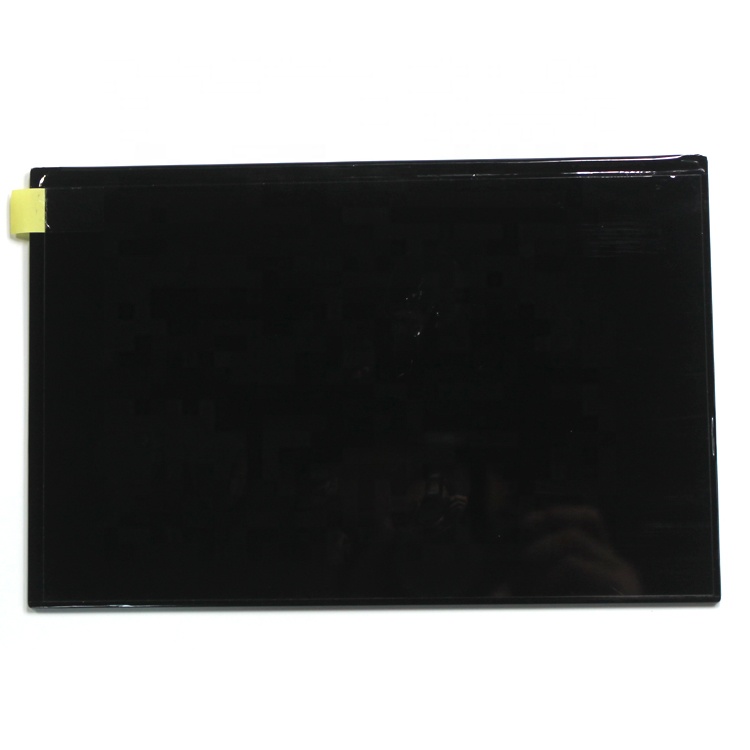

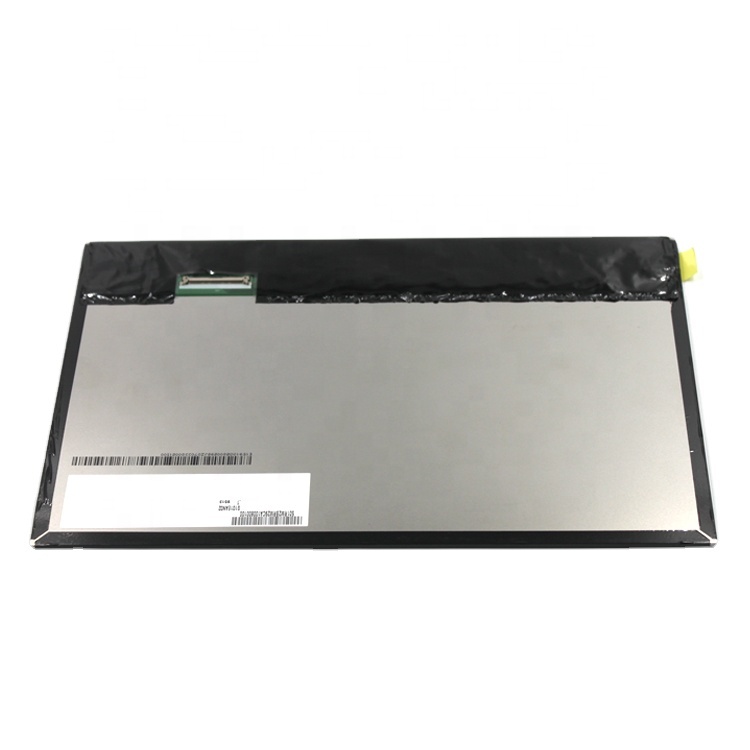

AUO G101EAN02.2 10.1-inch LCD Display

  • AUO G101EAN02.2 10.1-inch LCD Display
  • AUO G101EAN02.2 10.1-inch LCD Display
  • Model:G101EAN02.2
  • Brand:AUO
  • Size:10.1 inch
  • Resolution:1280×800
  • Brightness:500 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:Availability on request
  • Request a Quote
  • Technical Parameters
  • AUO G101EAN02.2 is a 10.1-inch AHVA TFT-LCD module with 1280 × 800 WXGA resolution, LVDS input and an LED backlight driving circuit. The reviewed final specification lists 500 cd/m² typical center luminance and a -20 to +70°C operating range.

    Request a G101EAN02.2 datasheet and quote | Compare 10.1-inch industrial LCD panels

    G101EAN02.2 Key Specifications

    Manufacturer / modelAUO / G101EAN02.2
    Diagonal / aspect ratio10.1 inches / 16:10
    Native resolution1280(RGB) × 800, WXGA
    Display modeAHVA, normally black
    Signal interfaceLVDS
    Center luminance500 cd/m² typical; 400 cd/m² minimum, at the specified 28 mA LED drive condition and 25°C
    Contrast ratio800:1 typical
    Viewing angle89° / 89° / 89° / 89° typical (R/L/U/D, CR = 10)
    Panel input voltage3.3 V typical; verify backlight power separately
    Active area216.96 × 135.60 mm
    Module dimensions227.91 × 148 mm typical outline; PCBA-side thickness 7.75 mm maximum
    Operating / storage range-20 to +70°C operating (panel front/rear surface); -30 to +80°C storage. Observe humidity and other limits in the specification
    Weight290 g maximum
    Reviewed documentAUO Final Specifications, internal revision 1.0, 2020-05-21; supplied PDF cover version 1.1

    Selection and Compatibility

    Evaluate this module when your equipment requires a 10.1-inch WXGA LVDS panel with 500 cd/m² typical luminance. Brightness alone does not establish outdoor readability: test the panel with the actual cover glass, enclosure, ambient lighting and thermal design.

    This is an LVDS module, not an eDP module. Matching size, resolution or connector pin count does not establish interchangeability. Check the complete label and revision, connector and pin assignment, LVDS mapping, timing, voltage, power sequence, backlight control, mechanical drawing and mounting details before connecting a replacement.

    Supply and Project Support

    This listing is for the LCD module. Its integrated LED backlight driving circuit does not mean that an external video controller board, touch panel or cable kit is included.

    This model is available for supply enquiries. Current production status, stock, date code, product condition, quantity, price and lead time are confirmed for each enquiry. Touch-panel, cable and controller options require separate compatibility and supply confirmation.

    Frequently Asked Questions

    Does G101EAN02.2 use LVDS or eDP?

    The reviewed final specification identifies LVDS-compatible input signals. Verify the exact unit and applicable document revision before ordering.

    Can it directly replace another 10.1-inch 1280 × 800 LCD?

    Direct replacement is not established by size and resolution. Compare the complete electrical and mechanical specifications, then validate a sample in the equipment.

    What should I send for a quotation?

    Send the full model, quantity, delivery country and application. For replacements, include the installed label, cable and controller information, and mechanical requirements.

    Request a G101EAN02.2 Quote

    Specification basis: AUO G101EAN02.2 Final Specifications, internal revision 1.0, dated 2020-05-21, sections 2.1–2.2 (PDF physical pages 7–8); supplied PDF cover version 1.1. Values describe the reviewed revision and are not a claim of current inventory or latest documentation.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G101EAN02.2. Please include your application and required quantity so we can confirm the applicable revision.

Request G101EAN02.2 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
