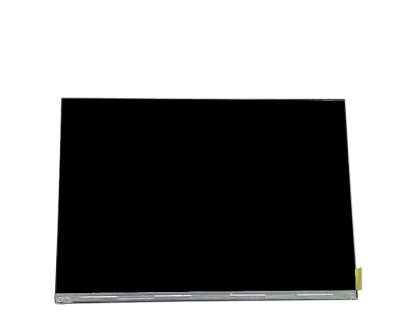

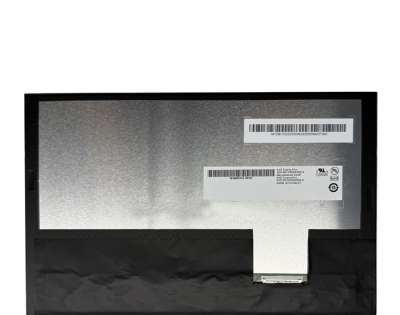

1.AUO G101EAN02.A Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G101EAN02.A |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 10.1inch | Designed For | Industrial，Outdoor High Brightness |
Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
Vibration Level |
| RoHS | RoHS |
Specific Features : | WLED Backlight，Life≥50K hours，U/D,L/R Reverse，6/8bit，Matte |
2.AUO G101EAN02.A Mechanical Features
Pixel Features : | Number of Pixel | 1280(RGB)×800 [WXGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch (mm) | 0.0565×0.1695 | Pixel Pitch (mm) | 0.1695×0.1695 [149PPI] |
Physical Size : | Active Viewing(mm) | 216.96(H) × 135.6(V) | Bezel Area (mm) | - |
Outline Dimension (mm) | 231.06(H) × 153.22(V) | Overall Depth(mm) | 5.05/8.07 (Typ./Max.) mm |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:10 | Shape Style | - |
Other Features : | Panel Cover | Weight | Surface |
- | 267g (Max.) | Hard coating |
3.AUO G101EAN02.A Optical Features
Basic Information : | Luminance | 1000cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 29 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) |
1931 Color Gamut : | NTSC Ratio | 60% | sRGB Coverage | 79% |
Adobe RGB Coverage | 63% | DCI-P3 Coverage | 63% |
Rec.2020 Coverage | 45% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Performance : | Sunlight Visibility | Sunlight Readable |
4.AUO G101EAN02.A Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 6.78W (Typ.) |
5.AUO G101EAN02.A Interface Features
Signal Electrical : | Input Current | 346/425mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | Power | 1.14/1.4W (Typ./Max.) |
Interface Features : | Position | Down right of panel | Signal | LVDS (1 ch, 8-bit) | Type | Connector |
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
I-PEX | 20765-040E-11A | 0.5mm | 40pins | 1pcs |
|
6.AUO G101EAN02.A Backlight Features
Lamp Features: | Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 50K(Min.) (Hours) |
Interface Features : | Position | Type | WLED Driver |
- | Included in signal interface | With LED Driver |
Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | 470/582mA (Typ./Max.) | Power Consumption | 5.64/6.98W (Typ./Max.) |
7.AUO G101EAN02.A Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 34 | 1 | N/A | N/A | N/A |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101EAN02.A. Please include your application and required quantity so we can confirm the applicable revision.
