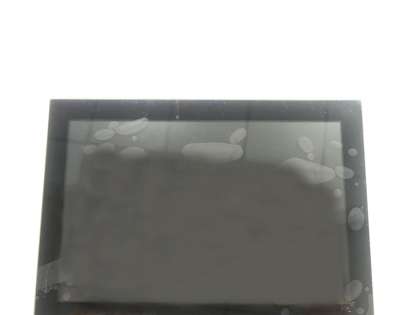

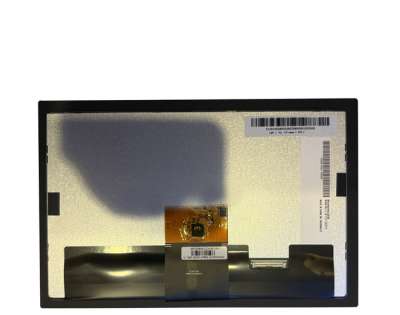

1.AUO G101EAT02.6 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G101EAT02.6 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 10.1inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
Vibration Level | RoHS | RoHS | ||
Specific Features : | With Touch,WLED Backlight,Life≥50K hours,With LED Driver | |||
2.AUO G101EAT02.6 Mechanical Features
Pixel Features : | Number of Pixel | 1280(RGB)×800, WXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch (W×H) | 0.0565×0.1695 mm | Pixel Pitch (W×H) | 0.1695×0.1695 mm [149PPI] | |
Physical Size : | Active Viewing (W×H) | 216.96×135.6 mm | Bezel Area (W×H) | 217.96×136.6 mm |
Outline Dimension (W×H) | 249.66×168.3 mm | Overall Depth | - | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 (W : H) | Shape Style | - | |
Touchscreen : | Touch Points | 10 points | TP Controller & Signal | With controller, USB |
OS System | - | Touch Tech | PCAP, Air Bonding | |
Fixation : | Without | |||
Other Features : | Panel Cover | Weight | Surface | |
With Cover Lens | 500g (Max.) | Anti-Scatter, Hard coating (7H) | ||
3.AUO G101EAT02.6 Optical Features
Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 29 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 49% | sRGB Coverage | 68% |
Adobe RGB Coverage | 51% | DCI-P3 Coverage | 51% | |
Rec.2020 Coverage | 37% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.AUO G101EAT02.6 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 3.024W (Typ.) |
5.AUO G101EAT02.6 Interface Features
Signal Electrical : | Input Current | 278.7/303mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | Power | 0.92/1.0W (Typ./Max.) |
Interface Features : | Position | - | Signal | LVDS (1 ch, 8-bit) | Type | Connector |
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
I-PEX | 20765-040E-11A | 0.5mm | 40pins | 1pcs |
6.AUO G101EAT02.6 Backlight Features
Lamp Features: | Shape | - | Lamp Type | WLED | Position | Edge light type | ||
Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |||
Interface Features : | Position | Type | WLED Driver | |||||
- | Included in signal interface | With LED Driver | ||||||
Driver Electrical : | Current Input | Voltage Input | Consumption | |||||
222/252mA (Typ./Max.) | 12.0±1.2V | 2.664/3.024W (Typ./Max.) | ||||||
7.AUO G101EAT02.6 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 20 | 1 | 508×408×279 | N/A | 0.0578 |
Contact us to request the current datasheet and mechanical drawing for G101EAT02.6. Please include your application and required quantity so we can confirm the applicable revision.
