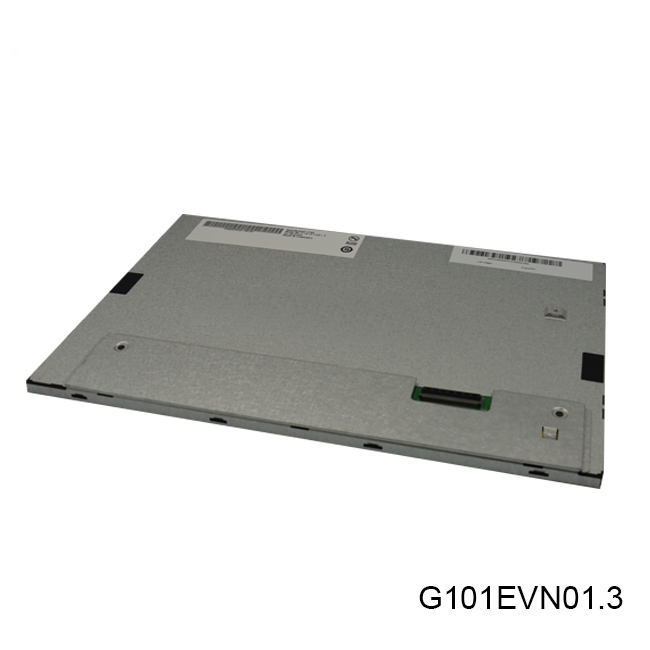

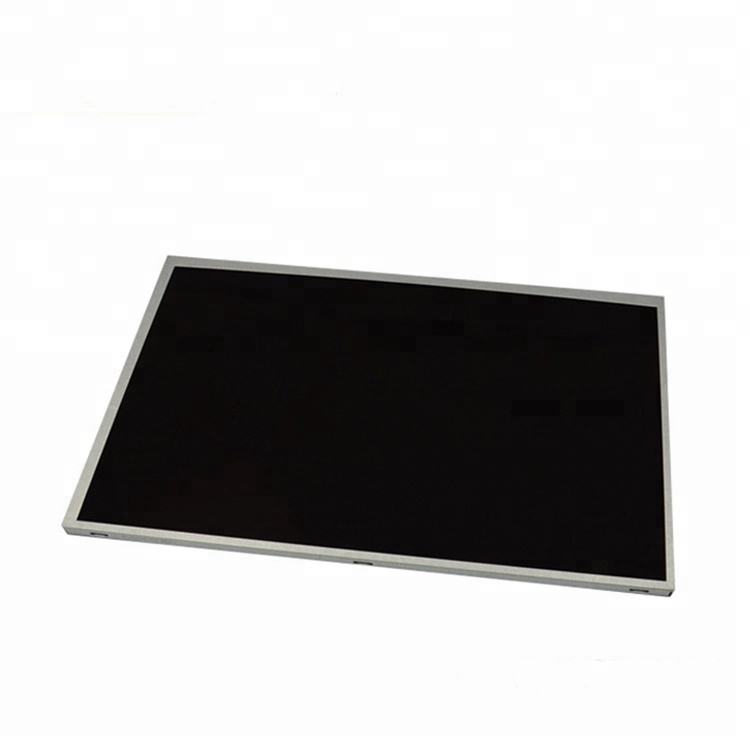

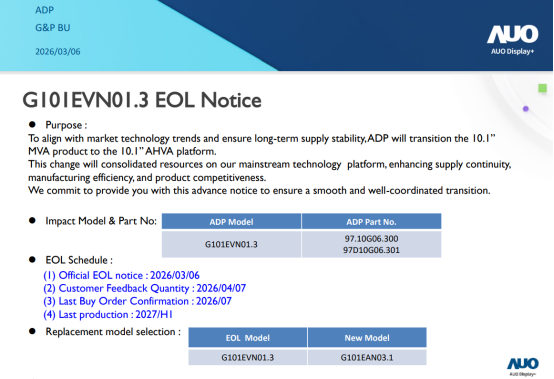

AUO G101EVN01.3 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101EVN01.3 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -20~ 70°C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | WLED Backlight，Life>=50K hours, With LED Driver， Reverse I/F，6/8bit， |
AUO G101EVN01.3 Optical Details
| Basic Information : | Luminance | 500cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | White Variation | 1.33/1.54 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 66% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 49% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101EVN01.3 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0565*0.1695 mm | Pixel Pitch(W×H) | 0.1695*0.1695 mm [149PPI] |
| Physical Size : | Active Viewing(mm) | 216.96(W)*135.6(H) mm | Outline Dim.(mm) | 227.91(W)*148(H) mm |
| Bezel Opening(mm) | 220.36(W)*139.1(H) mm | Overall Depth(mm) | 8.34 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Detail : | Weight | 350g (Max.) | Treatment | Hard coating, Reflection 1.5% (Typ.) |
AUO G101EVN01.3 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 4.32W (Typ.) |
AUO G101EVN01.3 Interface Detail
| Signal Electrical : | Input Current | 192/270mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.63/0.89W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH41-40S-0.5SH(05) | 0.5mm | 40pins | 1 pcs | |
AUO G101EVN01.3 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 300/480mA (Typ./Max.) |
| Consumption | 3.6/5.76W (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Backlight Driver : | With LED Driver |
AUO G101EVN01.3 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 44pcs / box | 450*375*320mm | - |
