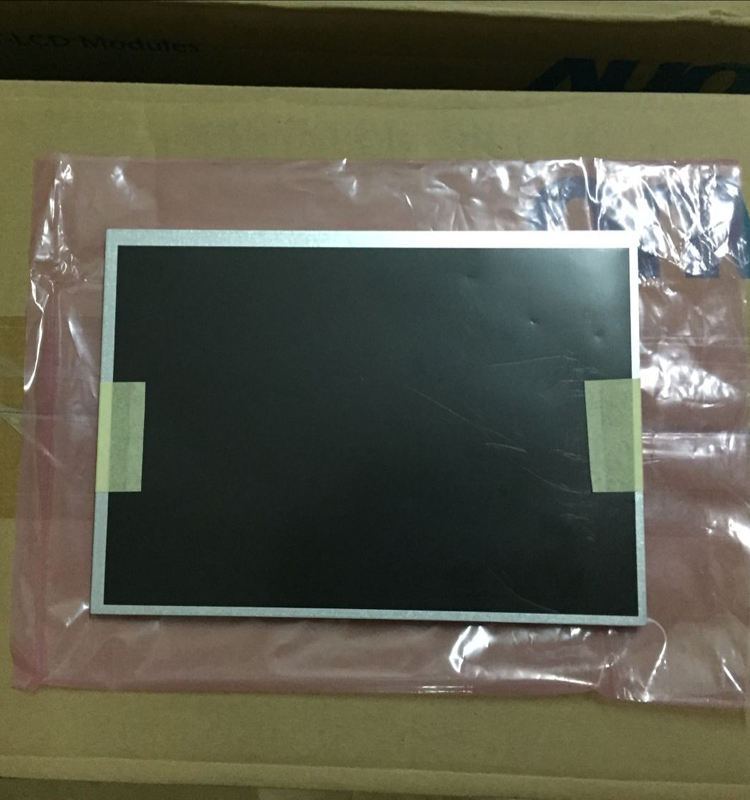

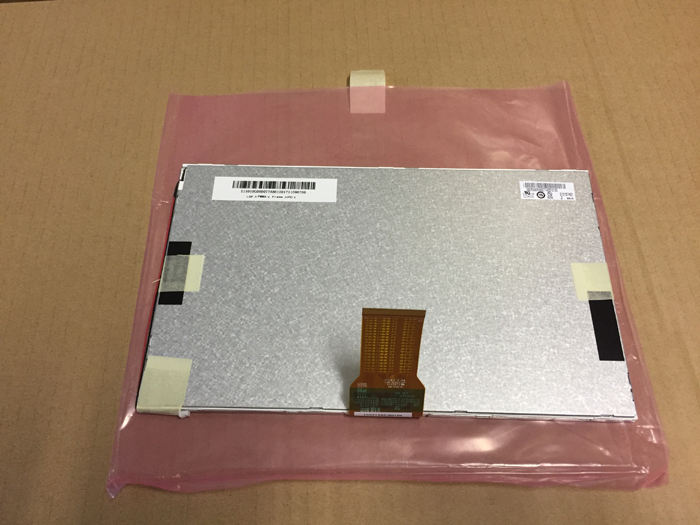

G101EVN01.1 AUO 10.1" 1280x800 LVDS LCD Panel - Industrial Grade Display Module

  • G101EVN01.1 AUO 10.1" 1280x800 LVDS LCD Panel - Industrial Grade Display Module
  • G101EVN01.1 AUO 10.1" 1280x800 LVDS LCD Panel - Industrial Grade Display Module
  • Model:G101EVN01.1
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1280*800
  • Brightness:300 cd/m² (Typ.)
  • Perspective:85/85/85/85(Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 60 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO  G101EVN01.1  Application Details

    Basic Info :Panel BrandAUOPanel ModelG101EVN01.1
    Diagonal Size10.1"ApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCM
    Reliability :


    Operating Temp.-20 ~ 60 °CStorage Temp.-30 ~ 70 °C
    RoHS StateRoHSVibration Rating-
    Specific Features :WLED Backlight,,With LED Driver,Reverse I/F


    AUO G101EVN01.1 Mechanical Details

    Pixel Features :Pixel Format1280(RGB)*800, WXGADot Pitch0.0565*0.1695 mm
    ConfigurationRGB Vertical StripePixel Pitch0.1695*0.1695 mm  [149PPI]
    Mechanical Size :


    Display Area216.96(W)*135.6(H) mmOutline Dim.220.36*139.1 mm (H*V)
    Outline Dim.229.46*149.2 mm (H*V)Outline Depth3.0/6.21 (Typ./Max.) mm
    Outline Features :


    Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:10 (H:V)Shape Style
    Fixation :Without
    Other Detail :Weight187g (Max.)SurfaceHard coating (3H), Reflection 1.5% (Max.)


    AUO G101EVN01.1 Optical Details

    BrightnessBrightness300 cd/m² (Typ.)Contrast Ratio1300:1(Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Optical ModeMVA, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time25 (Typ.)(Tr+Td) ms
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K (6-bit)
    Color Temperature6485KUniformity1.25 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio47%sRGB66% coverage
    Adobe RGB49% coverageDCI-P349% coverage
    Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G101EVN01.1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No
    Power Consumption :3.49W (Max.)


    AUO G101EVN01.1 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time25K(Typ.) (Hours)
    Replacement-Lamp Shape-PositionEdge light type
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input5.5/12.0V (Min./Max.)Current Input217mA (Max.)
    Consumption2.6W (Max.)


    AUO G101EVN01.1 Interface Details

    Signal Systerm LVDS (1 ch,6-bit) Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.) Current Input185/270mA (Typ./Max.)
    Consumption0.61/0.89W (Typ./Max.)
    Interface Features :TypeConnector PositionDown right of panel
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    HRSFH41-40S-0.5SH(05)0.5 mm40 pins1 pcs


    AUO G101EVN01.1 Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    40 pcs / box9.2 Kgs484*328*257 mm
