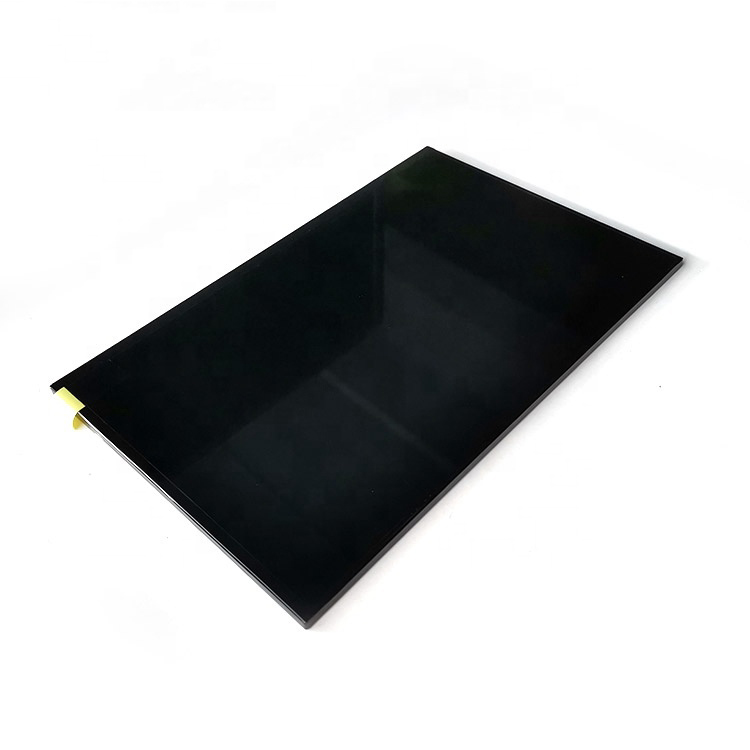

AUO G101EVN03.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101EVN03.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial，Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -20~ 60°C | ST Temperature | -30 ~70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Ultra High Brightness，WLED Backlight，Life>=50K hours, Reverse I/F, 6/8 bit，Glossy |
AUO G101EVN03.0 Optical Details
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G101EVN03.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0565*0.1695 (H*V) | Pixel Pitch(W*H) | 0.1695*0.1695 (H*V) [149PPI] |
| Physical Size : | Active Viewing(mm) | 216.96(H) *135.6(V) | Outline Dim.(mm) | 227.69(H) * 148.31(V) |
| Bezel Opening(mm) | - | Overall Depth(mm) | 5.6/7.75 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Detail : | Weight | 350g (Max.) | Treatment | Glare (Haze 0%) |
AUO G101EVN03.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G101EVN03.0 Interface Detail
| Signal Electrical : | Input Current | 192/270mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.63/0.89W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Logic Voltage for Signals : | - |

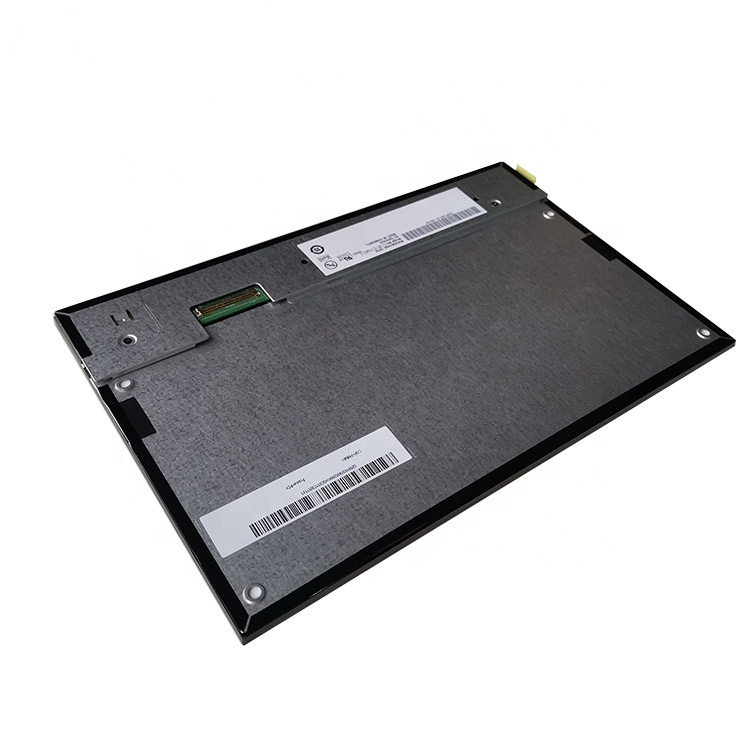

| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| JAE | HD1S040HA1 | 0.5mm | 40pins | 1 pcs | |
AUO G101EVN03.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 28.8±3.6V | Current Input | 60/210/360mA (Min./Typ./Max.) |
| Consumption | 1.51/6.04/11.66W (Min./Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | No |
-
