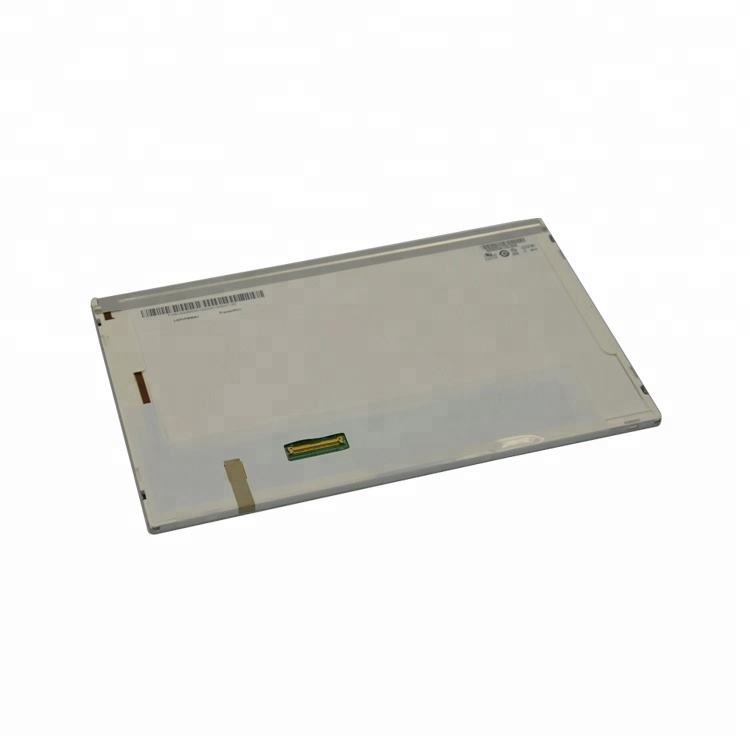

AUO G101EVT04.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101EVT04.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G101EVT04 V.0 |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -20~ 60 °C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | - |
| Features : | With Touch，WLED Backlight，Reverse I/F, Matte |
AUO G101EVT04.0 Optical Details
| Basic Information : | Luminance | 360cd/m²(Typ.) | Contrast Ratio | 1300:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Tf) ms |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101EVT04.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0565*0.1695 mm (H*V) | Pixel Pitch(W×H) | 0.1695*0.1695 mm (H*V) [149PPI] |
| Physical Size : | Active Viewing(mm) | 216.96*135.6 mm (H*V) | Outline Dim.(mm) | 257.35*175.5 mm (H*V) |
| Bezel Opening(mm) | - | Overall Depth(mm) | 6.64 (Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | - | Touchscreen | PCAP |
| Other Features : | Weight | 265g (Max.) | Surface | Antiglare (Haze 3%), Hard coating (9H) |
| Panel Cover | With Strengthened Cover Glass |
AUO G101EVT04.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 3.5W (Max.) |
AUO G101EVT04.0 Interface Detail
| Signal Electrical : | Input Current | 170/245mA (Typ./Max.) | Input Voltage | 3.3V (Typ.)(VDD) |
| Consumption | 0.56/0.8W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6-bit) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| I-PEX | 20455-040E-12R | 0.5mm | 40pins | 1 pcs | |
AUO G101EVT04.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 20K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 14.5/16V (Typ./Max.) | Current Input | 132mA (Typ.) |
| Consumption | 2.6W (Max.) |
| Interface Features : | Position | Rear | Type | Included in panel signal interface |
AUO G101EVT04.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 22pcs / box | - | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101EVT04.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G101EVT04.0 Datasheet
