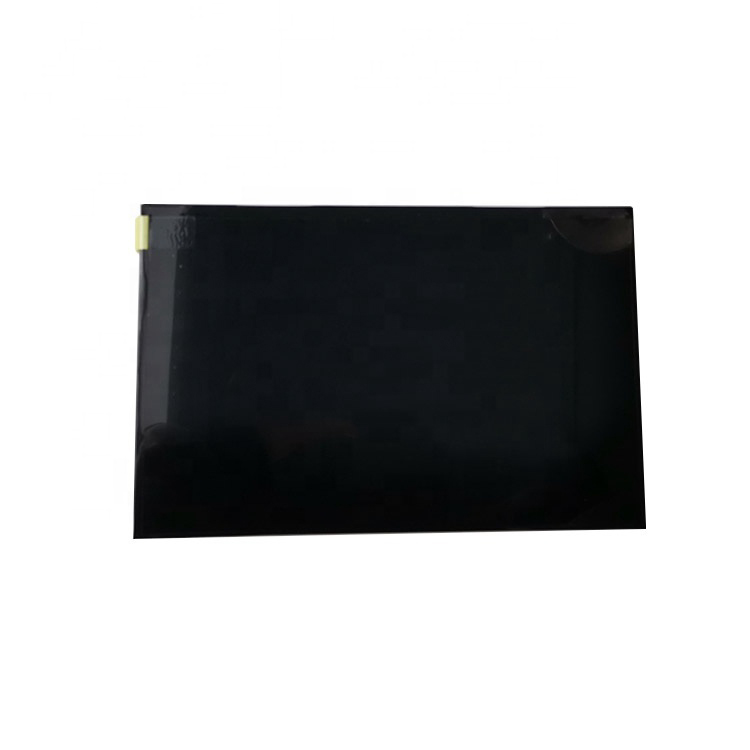

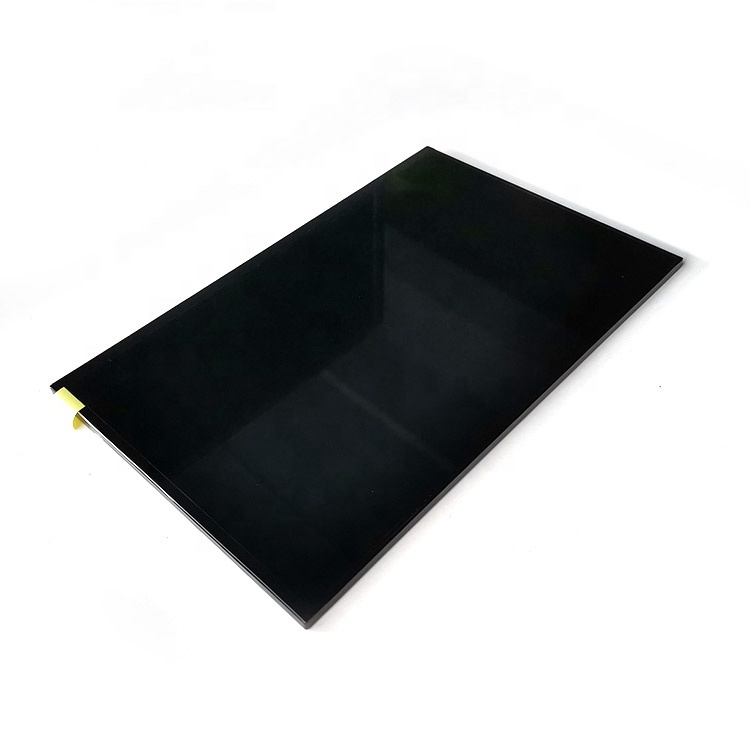

G101EVT05.1 10.1" 1280x800 Touch Screen LCD - Industrial Grade Screen Display

  • G101EVT05.1 10.1" 1280x800 Touch Screen LCD - Industrial Grade Screen Display
  • G101EVT05.1 10.1" 1280x800 Touch Screen LCD - Industrial Grade Screen Display
  • Model:G101EVT05.1
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1280×800
  • Brightness:440 cd/m² (Typ.)
  • Perspective:85/85/85/85 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-20 ~ 70 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO G101EVT05.1  Application Details

    Basic Info :Panel BrandAUOPanel ModelG101EVT05.1
    Diagonal Size10.1"ApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCM
    Reliability :


    Operating Temp.-20 ~ 70  °CStorage Temp.-30 ~ 80  °C
    RoHS StateRoHSVibration Rating-
    Specific Features :With Touch,WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F,6/8 bit,Matte


    AUO G101EVT05.1 Mechanical Details

    Pixel Features :Pixel Format1280(RGB)*800, WXGADot Pitch0.0565*0.1695 mm (H*V)
    ConfigurationRGB Vertical StripePixel Pitch0.1695*0.1695 mm (H*V)  [149PPI]
    Mechanical Size :


    Display Area216.96*135.6 mm (H*V)Outline Dim.-
    Outline Dim.257.35(W)*175.5(H) mmOutline Depth7.6 (Typ.) mm
    Outline Features :


    Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:10 (H:V)Shape Style
    Touchscreen :TP ControllerWith controllerControl SignalI²C/USB (Android 6.1)
    Touch Points-TP TechnologyPCAP, Air Bonding
    Other Detail :Mass350g (Max.)SurfaceAntiglare (Haze 3%), Hard coating (3H), Reflection 1.5% (Max.)
    Panel Cover
    With Cover Lens
    Panel CoverWith Cover Lens


    AUO G101EVT05.1 Optical Details

    BrightnessBrightness440 cd/m² (Typ.)Contrast Ratio1300:1(Typ.) (Transmissive)
    Viewing Angle85/85/85/85 (Typ.)(CR≥10)Optical ModeMVA, Normally Black, Transmissive
    Viewing DirectionSymmetryResponse Time25 (Typ.)(Tr+Td) ms
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature

    6485KUniformity1.43 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio47%sRGB66% coverage
    Adobe RGB49% coverageDCI-P349% coverage
    Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G101EVT05.1 Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :No
    Power Consumption :6.65W (Typ.)


    AUO G101EVT05.1 Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time50K(Min.) Hours
    Replacement-Lamp Shape-PositionEdge light type
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input12V (Typ.)Current Input300/480mA (Typ./Max.)
    Consumption3.6/5.76W (Typ./Max.)


    AUO G101EVT05.1 Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit) Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.) Current Input192/270mA (Typ./Max.)
    Consumption0.63/0.89W (Typ./Max.)
    Interface Features :TypeConnector PositionDown right of panel
    Connector Detail :

    BrandModelPin PitchPinsAmountConfiguration
    HRSFH41-40S-0.5SH(05)0.5 mm40 pins1 pcs


    AUO G101EVT05.1 Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    40 pcs / box-484*328*257 mm



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G101EVT05.1. Please include your application and required quantity so we can confirm the applicable revision.
