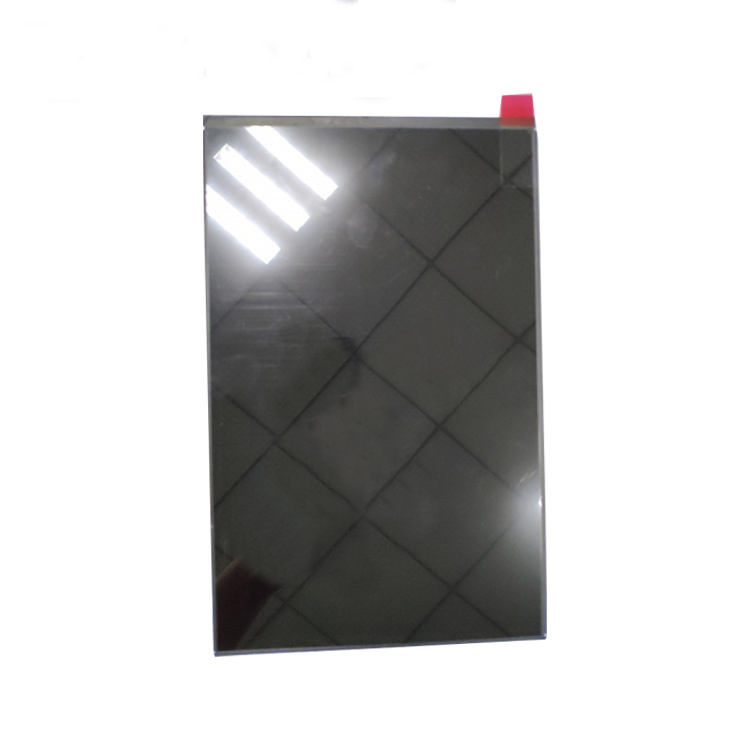

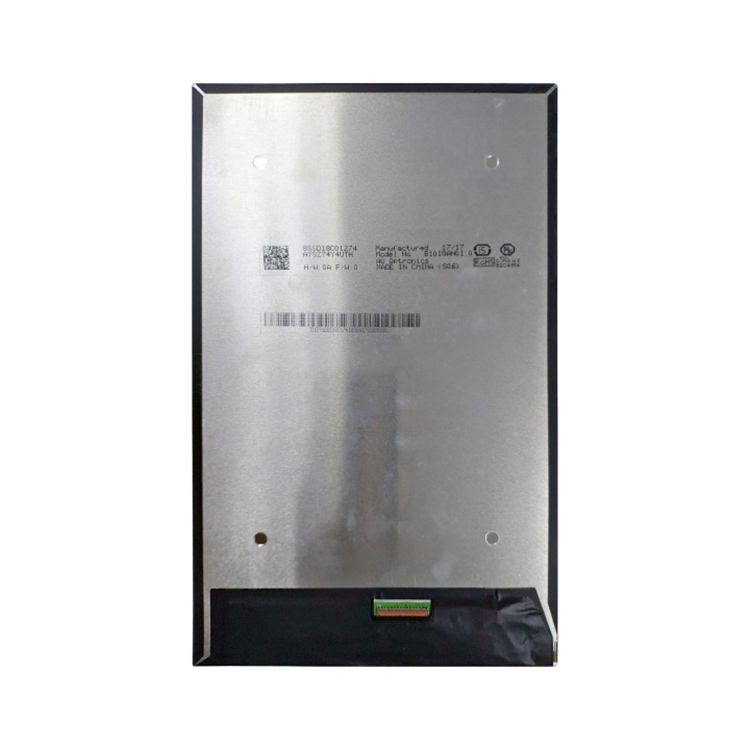

AUO G101QAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101QAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，Portrait type |
AUO G101QAN01.1 Optical Details
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Variation | 1.25 (Max.)(5 points) |
AUO G101QAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1600(RGB)*2560 [WQXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.0282*0.0846 mm | Pixel Pitch(W*H) | 0.0846*0.0846 mm [300PPI] |
| Physical Size : | Active Viewing(mm) | 135.36(W)*216.576(H) mm | Outline Dim.(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 10:16(H:V) | Orientation | Portrait type |
AUO G101QAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G101QAN01.1 Interface Detail
| Signal Electrical : | Input Current | - | Input Voltage | - |
| Consumption | - | Signal Interface | MIPI (2 ch, 4 data lanes) |
AUO G101QAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 15K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | No |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101QAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
