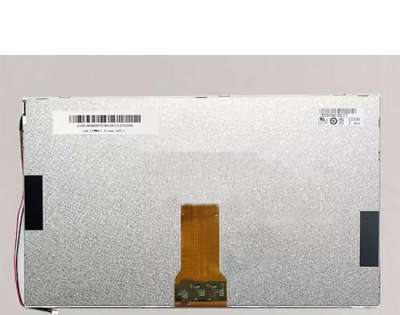

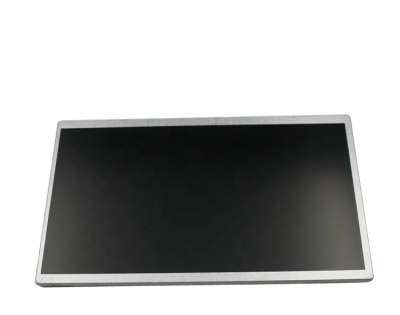

1.AUO G101SAN01.2 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G101SAN01.2 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 10.1inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Specific Features : | WLED Backlight,U/D,L/R Reverse,6/8bit,Matte | |||
2.AUO G101SAN01.2 Mechanical Features
Pixel Features : | Number of Pixel | 1024(RGB)×600, WSVGA | Arrangement | RGB Vertical Stripe |
Dot Pitch (mm) | 0.0725×0.2088 (H×V) | Pixel Pitch (mm) | 0.2175×0.2088 (H×V) [117PPI] | |
Physical Size : | Active Viewing(mm) | 222.72(H) × 125.28(V) | Bezel Area (mm) | 224.72(H) × 127.28(V) |
Outline Dimension (mm) | 235(H) × 143(V) | Overall Depth(mm) | 5.5 (Max.) | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | - | |
Mounting : | Without | |||
Other Features : | Panel Cover | Weight | Surface | |
- | 320g (Max.) | Antiglare, Hard coating (3H) | ||
3.AUO G101SAN01.2 Optical Features
Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | |||
1931 Color Gamut : | NTSC Ratio | - | sRGB Coverage | 77% |
Adobe RGB Coverage | 61% | DCI-P3 Coverage | 62% | |
Rec.2020 Coverage | 45% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
4.AUO G101SAN01.2 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
5.AUO G101SAN01.2 Interface Features
Signal Electrical : | Input Current | 6.5/16/0.6/0.2mA (Typ.)(IVDD/IAVDD/IVGH/IVGL) | Input Voltage | 3.3/10/18/-8V (Typ.)(VDD/AVDD/VGH/VGL) | |||||||
Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | Signal Interface | TTL (1 ch, 6/8-bit) | ||||||||
Interface Features : | Position | - | Type | FPC | |||||||
Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin pitch | Pin Configuration | |||||
1 pcs | 50 pins | 0.5 mm | |||||||||
6.AUO G101SAN01.2 Backlight Features
Lamp Features: | Shape | 3 strings | Lamp Type | WLED | Position | Edge light type | |||||
Exchange | - | Amount | 8S3P | Life | 30K(Min.) (Hours) | ||||||
WLED Electrical : | Input Voltage | 23.6/26.4V (Typ./Max.) | Input Current | 30mA (Typ.) | |||||||
Power Consumption | 2.124/2.376W (Typ./Max.) | ||||||||||
Interface Features : | Position | Type | WLED Driver | ||||||||
- | Included in signal interface | - | |||||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||
A1251-H02 | 2pins | 1pcs | BLE-2PINS-AC | ||||||||
Backlight Driver : | No | ||||||||||
7.AUO G101SAN01.2 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 35 | 1 | 527×347×257 | 9.9 | 0.0470 |
Contact us to request the current datasheet and mechanical drawing for G101SAN01.2. Please include your application and required quantity so we can confirm the applicable revision.
