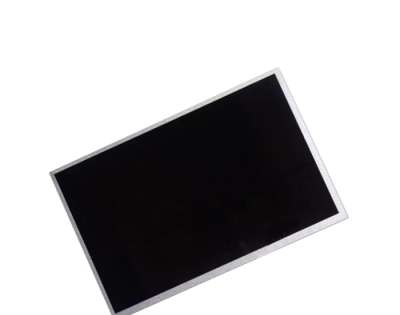

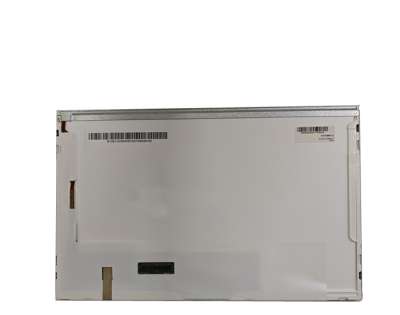

1.AUO G101SAN01.A Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G101SAN01.A |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Panel Size | 10.1inch | Designed For | Industrial |
Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS |
Specific Features : | WLED Backlight，Life≥50K hours，U/D,L/R Reverse，6/8bit，Matte |
2.AUO G101SAN01.A Mechanical Features
Pixel Features : | Number of Pixel | 1024(RGB)×600, WSVGA | Arrangement | RGB Vertical Stripe |
Dot Pitch (mm) | 0.0725×0.2088 (H×V) | Pixel Pitch (mm) | 0.2175×0.2088 (H×V) [117PPI] |
Physical Size : | Active Viewing(mm) | 222.72(H) × 125.28(V) | Bezel Area (mm) | - |
Outline Dimension (mm) | - | Overall Depth(mm) | - |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | - |
Other Features : | Panel Cover | Weight | Surface |
- | - | Antiglare, Hard coating (3H) |
3.AUO G101SAN01.A Optical Features
Basic Information : | Luminance | 300cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | - |
4.AUO G101SAN01.A Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (U/D, L/R) |
5.AUO G101SAN01.A Interface Features
Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) |
Signal Interface | LVDS (1 ch, 6/8-bit) |
6.AUO G101SAN01.A Backlight Features
Lamp Features: | Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 50K(Min.) (Hours) |
Interface Features : | Position | Type | WLED Driver |
- | Connector | No |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101SAN01.A. Please include your application and required quantity so we can confirm the applicable revision.
