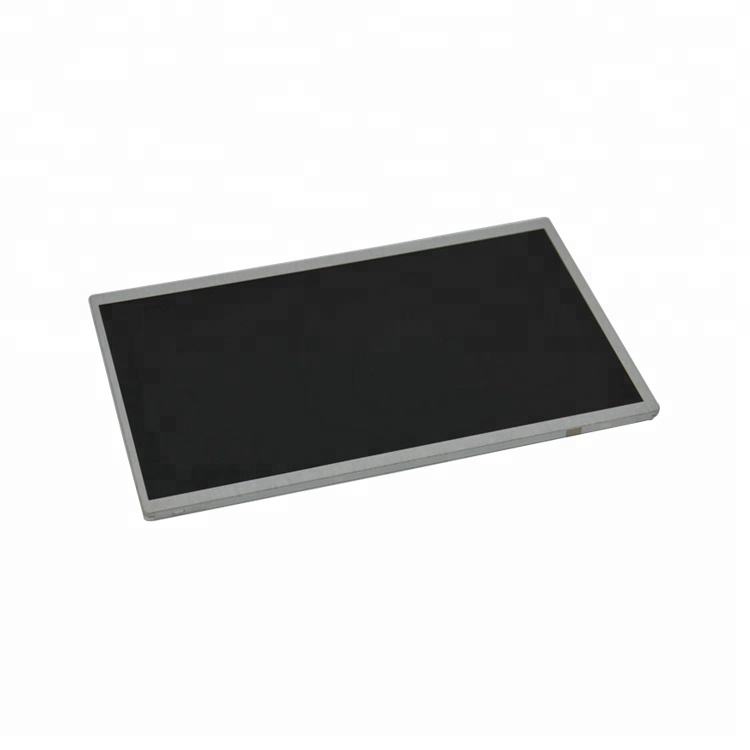

AUO G101STN01.C Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101STN01.C |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature,WLED Backlight,Life>=50K hours,With LED Driver,Reverse I/F, 6/8 bit,Matte |
AUO G101STN01.C Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 20 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 63% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101STN01.C Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*600, WSVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0725*0.2088 mm (H*V) | Pixel Pitch(W*H) | 0.2175*0.2088 mm (H*V) [117PPI] |
| Physical Size : | Active Viewing(mm) | 222.72*125.28 mm (H*V) | Outline Dim.(mm) | 235*143 mm (H*V) |
| Bezel Opening(mm) | 226.43*128.1 mm (H*V) | Overall Depth(mm) | 4.9*0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Weight | 180g (Max.) | Treatment | Antiglare, Antireflection |
AUO G101STN01.C Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 3.83W (Max.) |
AUO G101STN01.C Interface Detail
| Signal Electrical : | Input Current | 140/160mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.46/0.53W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| I-PEX |
20455-040E-12R | 0.5mm | 40pins | 1 pcs | |
AUO G101STN01.C Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) |
| Driver Electrical : | Voltage Input | 31/34V (Typ./Max.) | Current Input | 41mA (Typ.) |
| Consumption | 2.54/2.79W (Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Input | 9.0/12.0/15.0V (Min./Typ./Max.) | Current Input | 225/270mA (Typ./Max.) |
| Consumption | 2.7/3.3W (Typ./Max.) |
AUO G101STN01.C Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 35 pcs / box | 528*348*252 mm | 9.9 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101STN01.C. Please include your application and required quantity so we can confirm the applicable revision.
