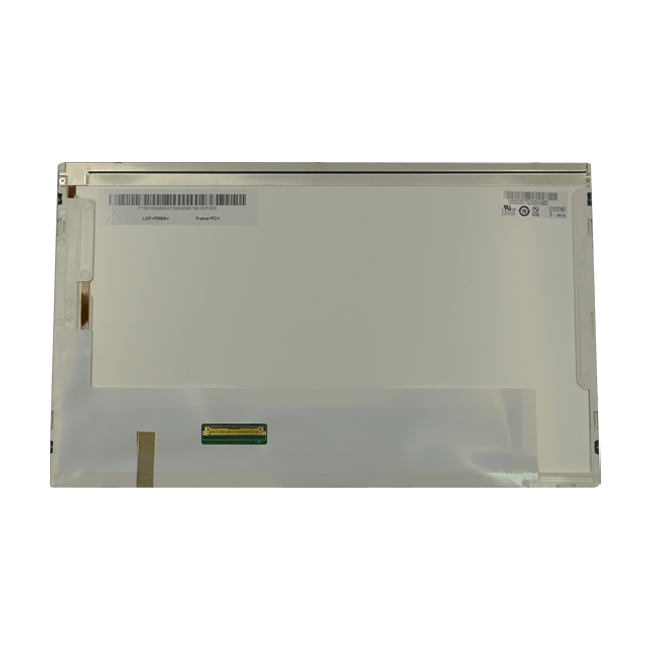

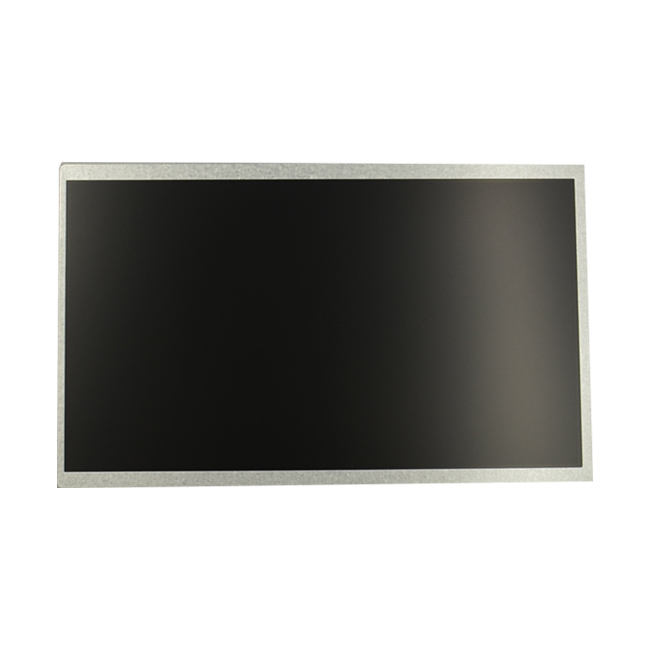

AUO G101STN01.6 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101STN01.6 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -30 ~70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，With LED Driver，Reverse I/F，180°Reverse，6/8 bit，Matte |
AUO G101STN01.6 Optical Details
| Basic Information : | Luminance | 250 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 7/9 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G101STN01.6 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*600 [WSVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0725*0.2088 mm (H*V) | Pixel Pitch(W*H) | 0.2175*0.2088 mm (H*V) [117PPI] |
| Physical Size : | Active Viewing(mm) | 222.72*125.28 mm (H*V) | Outline Dim.(mm) | 235*143 mm (H*V) |
| Bezel Opening(mm) | 226.34*128.10 mm (H*V) | Overall Depth(mm) | 4.9±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M2) on left, right bezel |
| Other Detail : | Weight | 180g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G101STN01.6 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 1.8W (Max.) |
AUO G101STN01.6 Interface Detail
| Signal Electrical : | Input Current | 140/160mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.53W (Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Logic Voltage for Signals : | - |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| I-PEX | 20455-040E-76 | 0.5mm | 40pins | 1 pcs | |
AUO G101STN01.6 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 15K(Min.) (Hours) |
| Driver Electrical : | Voltage Input | 32/36V (Typ./Max.) | Current Input | 16.7mA (Typ.) |
| Consumption | 1.07/1.20W (Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Input | 9.0/12.0/15.0V (Min./Typ./Max.) | Current Input | 110/125mA (Typ./Max.) |
| Consumption | 1.32/1.5W (Typ./Max.) |
AUO G101STN01.6 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 35pcs / box | 9.0 Kgs
| 484*328*257 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101STN01.6. Please include your application and required quantity so we can confirm the applicable revision.
