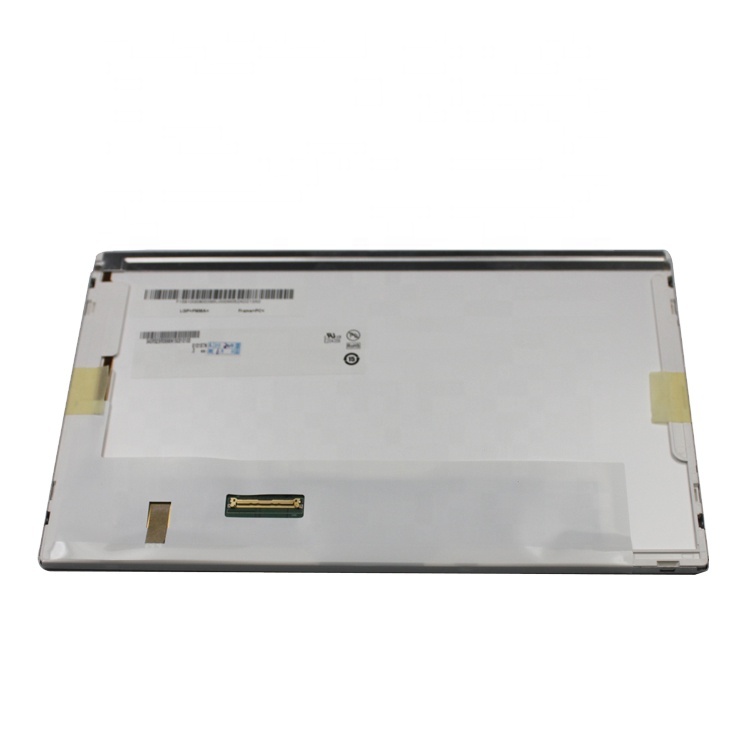

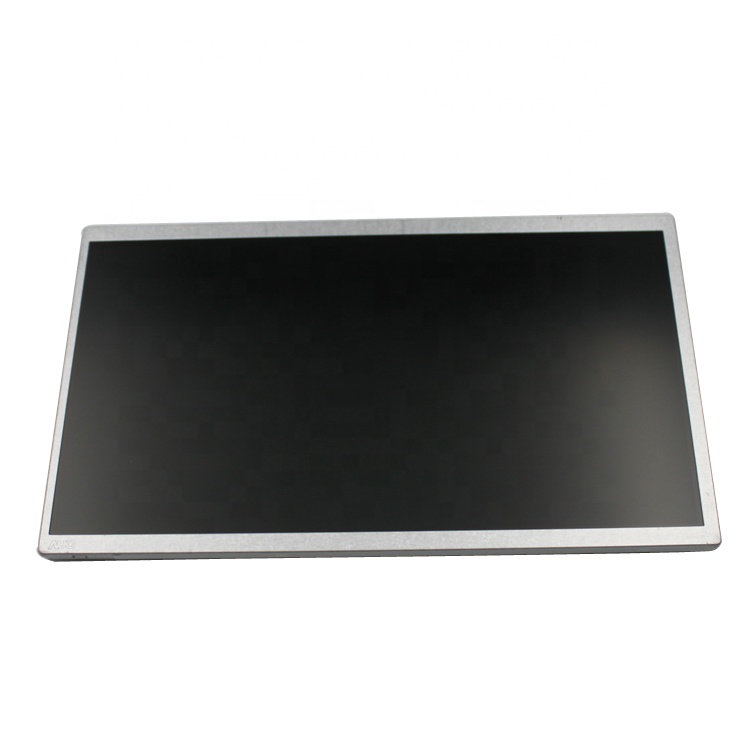

G101STN01.D AUO 10.1" 1024x600 LVDS LCD - Industrial LCD Display

  • G101STN01.D AUO 10.1" 1024x600 LVDS LCD -  Industrial LCD Display
  • G101STN01.D AUO 10.1" 1024x600 LVDS LCD -  Industrial LCD Display
  • Model:G101STN01.D
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1024×600
  • Brightness:450 cd/m² (Typ.)
  • Perspective:70/70/60/60
  • Interface:LVDS
  • Operating Temp.:-10~60℃
  • Production State:In Production
  • Request a Quote
  • Technical Parameters
  • AUO G101STN01.D Application Details

    Basic Detail :ManufacturerAUOModel NameG101STN01.D
    Panel Typea-Si TFT-LCD , LCM
    Panel Size10.1 inchDesigned ForIndustrial
    Maximum Ratings :


    OP Temperature-10 ~ 60 ℃ST Temperature-30 ~ 70℃
    RoHSRoHSVibration Level1.5G (14.7 m/s²)
    Features :WLED Backlight ,Life>=50K hours,With LED Driver,Reverse I/F,6/8bit,matte


    AUO G101STN01.D Optical Details

    Basic Information :Luminance450 cd/m² (Typ.)Contrast Ratio500:1 (Typ.) (Transmissive)
    Good View at-Response Speed7/9 (Typ.)(Tr/Td) ms
    Viewing Angle70/70/60/60 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :


    ChromaticityWx:0.313; Wy:0.329Support Color262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Temperature6485KWhite Variation1.25 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio46%sRGB64% coverage
    Adobe RGB48% coverageDCI-P347% coverage
    Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G101STN01.D Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)*600, WSVGAArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.0725*0.2088 mm (H*V)Pixel Pitch(W×H)0.2175*0.2088 mm (H*V)  [117PPI]
    Physical Size :Display Area222.72*125.28 mm (H*V)Outline Dim.226.43*128.1 mm (H*V)
    Outline Dim.235*143 mm (H*V)Outline Depth4.9±0.3 mm
    Outline Features :

    Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:9Shape Style
    Fixation :Side mounting holes (4-M2) on left, right bezel
    Other Detail :Mass180g (Max.)SurfaceAntiglare, Hard coating (3H)



    AUO G101STN01.D Electronics Details

    Refresh Rate :60Hz
    Reverse Scan :No
    Total Consumption :3.12W (Max.)


    AUO G101STN01.D Interface Details

    Signal Electrical :Input Current140/160mA (Typ./Max.)Input Voltage3.3V (Typ.)
    Consumption0.46/0.53W (Typ./Max.)Signal InterfaceLVDS (1 ch, 8-bit)
    Interface Features :
    Position
    Down left of panelPhysical TypeConnector
    Interface Detail :BrandModelPin PitchPinsAmountPin Assignment
    I-PEX
    20455-040E-12R
    0.5 mm40 pins1 pcs


    AUO G101STN01.D Lightting Details

    Lamp Features :Lamp Type
    WLED
    Amount-AmountEdge light type
    Exchange-Lamp Shape-Lamp Life50K(Min.) (Hours)
    Lamp Electrical :Voltage Input31/34V (Typ./Max.)Current Input33.3mA (Typ.)
    Consumption2.065/2.264W (Typ./Max.)
    Interface Features :Position-Physical TypeIncluded in signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :Input Voltage12.0±1.2V Input Current180/216mA (Typ./Max.)
    Consumption2.16/2.59W (Typ./Max.)


    AUO G101STN01.D Packing Details

    Package Box :AmountSize (L*W*H)Weight
    35 pcs / box450*375*320 mm9.9 Kgs



Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G101STN01.D. Please include your application and required quantity so we can confirm the applicable revision.
