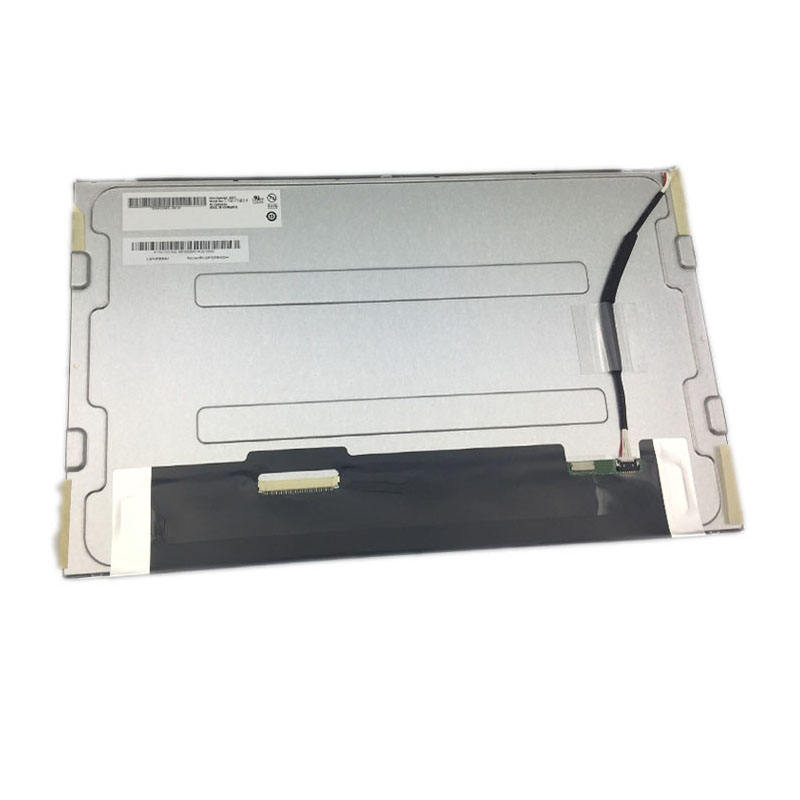

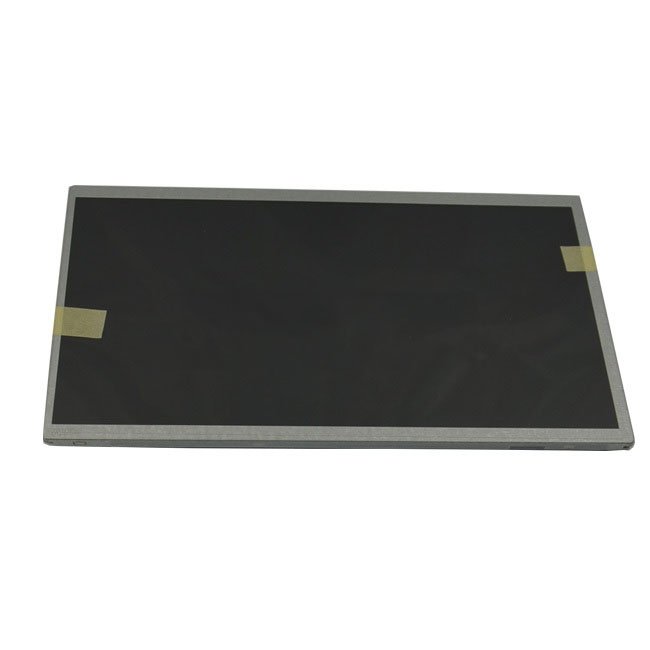

G101STN01.G AUO 10.1" 1024x600 LCD Panel - 500nits Industrial LVDS Screen

  • G101STN01.G AUO 10.1" 1024x600 LCD Panel - 500nits Industrial LVDS Screen
  • G101STN01.G AUO 10.1" 1024x600 LCD Panel - 500nits Industrial LVDS Screen
  • Model:G101STN01.G
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1024×600
  • Brightness:250 cd/m² (Typ.)
  • Perspective:70/70/60/60
  • Interface:LVDS
  • Operating Temp.:-10 ~ 60 °C
  • Production State:Discontinued
  • Request a Quote
  • Technical Parameters
  • AUO  G101STN01.G  Application Details

    Basic Info :Panel BrandAUOPanel ModelG101STN01.G
    Diagonal Size10.1"ApplicationIndustrial
    Panel Typea-Si TFT-LCD , LCM
    Reliability :


    Operating Temp.-10 ~ 60 °CStorage Temp.-30 ~ 70 °C
    RoHS StateRoHSVibration Rating1.5G (14.7 m/s²)
    Specific Features :WLED Backlight,180°Reverse,,With LED Driver,Reverse I/F,6/8 bit,Matte


    AUO G101STN01.G Mechanical Details

    Pixel Features :Pixel Format1024(RGB)*600, WSVGADot Pitch0.0725*0.2088 mm (H*V)
    ConfigurationRGB Vertical StripePixel Pitch0.2175*0.2088 mm (H*V)  [117PPI]
    Mechanical Size :


    Display Area222.72*125.28 mm (H*V)Outline Dim.226.34*128.1 mm (H*V)
    Outline Dim.235*143 mm (H*V)Outline Depth4.9/5.2 (Typ./Max.) mm
    Outline Features :


    Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape Style
    Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
    Other Detail :Weight180g (Typ.)SurfaceAntiglare, Hard coating (3H)


    AUO G101STN01.G Optical Details

    BrightnessBrightness250 cd/m² (Typ.)Contrast Ratio500:1(Typ.) (Transmissive)
    Viewing Angle70/70/60/60 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction-Response Time7/9 (Typ.)(Tr/Td) ms
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K/16.7M (6-bit / 6-bit +Hi- FRC)
    Color Temperature


    6485KUniformity1.25 (Max.)(5 points)
    1931 Color Gamut :NTSC Ratio47%sRGB65% coverage
    Adobe RGB49% coverageDCI-P348% coverage
    Rec.202035% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G101STN01.G Electronics Details

    Frame Frequency :60Hz
    Reverse Scan :Yes (180°)
    Power Consumption :1.8W (Typ.)


    AUO G101STN01.G Backlight Details

    Back-light Features :Lamp TypeWLEDAmount-Life Time15K(Min.) Hours
    Replacement-Lamp Shape-PositionEdge light type
    Interface Features :TypeIncluded in signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input9.0/12.0/15V (Min./Typ./Max.)Current Input110/125mA (Typ./Max.)
    Consumption1.32/1.5W (Typ./Max.)


    AUO G101STN01.G Interface Details

    Signal Systerm :LVDS (1 ch, 6/8-bit) Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.) Current Input140/160mA (Typ./Max.)
    Interface Features :


    TypeConnector PositionDown left of panel
    Connector Detail :


    BrandModelPin PitchPinsAmountConfiguration
    I-PEX20455-040E-76
    0.5 mm

    40 pins
    1 pcs


    AUO G101STN01.G Carton Details

    Package Carton :AmountNet WeightCarton Size (L*W*H)
    35 pcs / box9.9 Kgs528*348*252 mm
