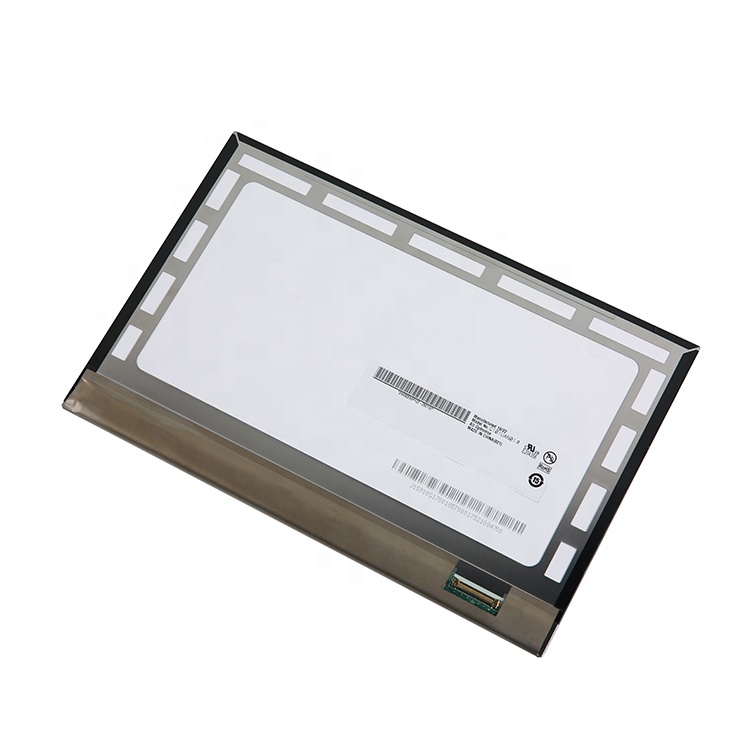

AUO 10.1inch G101UAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101UAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -20 ~60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | WLED Backlight，With LED Driver，Reverse I/F |
AUO 10.1inch G101UAN01.0 Optical Details
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit / +Hi- FRC) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 54% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO 10.1inch G101UAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1200 [WUXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.038*0.113 mm (H*V) | Pixel Pitch(W*H) | 0.113*0.113 mm (H*V) [224PPI] |
| Physical Size : | Active Viewing(mm) | 216.81*135.5 mm (H*V) | Outline Dim.(mm) | 228.22*147.3 mm (H*V） |
| Bezel Opening(mm) | - | Overall Depth(mm) | 5.35 (Typ.) mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Detail : | Weight | 140g (Max.) | Treatment | Hard coating, Antireflection |
AUO 10.1inch G101UAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO 10.1inch G101UAN01.0 Interface Detail
| Signal Electrical : | Input Current | 200/240mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 0.66/0.79W (Typ./Max.) | Signal Interface | eDP (2 Lanes) |
| Logic Voltage for Signals : | - |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| I-PEX | 20455-030E-12 | 0.5mm | 30pins | 1 pcs | EDP-30P2L-020A |
AUO 10.1inch G101UAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 0.15/0.18A (Typ./Max.) |
| Consumption | 1.82/2.16W (Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
AUO 10.1inch G101UAN01.0 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 50 pcs / box | - | 445*283*377 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101UAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
