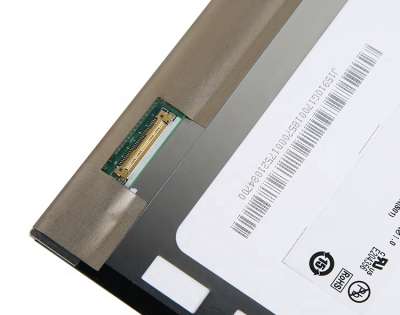

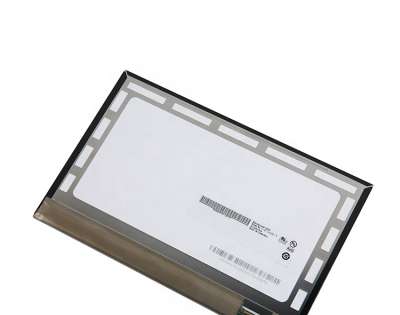

AUO G101UAN01.1 10.1-inch LCD | 1920x1200 eDP, 800 nits

  • AUO G101UAN01.1 10.1-inch LCD | 1920x1200 eDP, 800 nits
  • AUO G101UAN01.1 10.1-inch LCD | 1920x1200 eDP, 800 nits
  • AUO G101UAN01.1 10.1-inch LCD | 1920x1200 eDP, 800 nits
  • Model:G101UAN01.1
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1920×1200
  • Brightness:800 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:eDP
  • Operating Temp.:-10 ~ 60 °C
  • Production State:Availability on request
  • Request a Quote
  • Technical Parameters
  • AUO G101UAN01.1 is a 10.1-inch AHVA TFT-LCD module with 1920 × 1200 WUXGA resolution, eDP 1.2 input and an LED backlight driving circuit. The reviewed specification lists 800 cd/m² typical white luminance, measured as a five-point average, and a -10 to +60°C operating range.

    Request a G101UAN01.1 datasheet and quote | Compare 10.1-inch industrial LCD panels

    Document status: The supplied document is Preliminary Rev.0.0. Specifications may change. Confirm the current revision, exact unit and mechanical drawing before design approval or ordering.

    G101UAN01.1 Key Specifications

    Manufacturer / modelAUO / G101UAN01.1
    Diagonal / aspect ratio10.1 inches / 16:10
    Native resolution1920 × 1200, WUXGA
    Display modeAHVA, normally black
    Signal interface2-lane eDP 1.2
    White luminance800 cd/m² typical; 600 cd/m² minimum (five-point average, LED current 17.9 mA, 25°C)
    Contrast ratio800:1 typical
    Viewing angle89° / 89° / 89° / 89° typical (R/L/U/D, CR = 10)
    Panel input voltage3.3 V typical; verify backlight supply separately
    Active area216.81 × 135.5 mm
    Module dimensions229.9 × 150.5 mm outline; 2.9 mm maximum panel-side thickness. PCBA-side maximum thickness is TBD in the preliminary document; request the current drawing
    Operating range-10 to +60°C; observe the complete environmental conditions in the applicable specification
    Storage range-20 to +60°C
    Weight170 g maximum
    Reviewed specificationAUO Preliminary Specifications, revision 0.0, 2022-04-29

    eDP Integration and Replacement Checks

    Evaluate this module for equipment requiring a compact 16:10 WUXGA display with an eDP-compatible host. Confirm the full model and revision, connector and pin assignment, lane configuration, link rate, timing, panel power sequence, backlight controls and mechanical drawing before connecting the module.

    This panel uses eDP input. It does not accept VGA directly. An external video controller or conversion board must be selected and qualified separately if the host does not provide the required eDP output.

    The listed item is the LCD module. Its LED backlight driving circuit does not mean an external VGA controller board, touch panel or cable kit is included. Confirm any additional components individually.

    800 cd/m² typical brightness does not guarantee sunlight readability. Validate cover-glass reflection, ambient lighting, enclosure temperature and thermal management in the actual equipment.

    Supply and Application Review

    Send the full model, quantity, delivery country and application for a supply review. Stock, production status, date code, condition, price and lead time are confirmed for each enquiry. Suitability for HMI, measurement or embedded equipment requires validation in the final system.

    Frequently Asked Questions

    Does G101UAN01.1 have a VGA input?

    No. The reviewed AUO specification identifies eDP 1.2. A VGA source requires a separately verified conversion solution.

    Can it replace G101UAN01.0?

    Matching screen size and resolution does not establish interchangeability. Compare full revisions, brightness requirements, electrical interfaces, power, mechanical dimensions and connector placement, then validate a sample.

    What information is needed for a replacement review?

    Provide the installed full model, rear label, applicable datasheet, controller and cable information, quantity, enclosure requirements and operating environment.

    Request a G101UAN01.1 Quote

    Specification basis: AUO G101UAN01.1 Preliminary Specifications, revision 0.0, 2022-04-29, sections 2.1–2.2 (PDF pages 5–6). Values refer to the reviewed revision, not current stock or a claim that this is the latest specification.

Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for G101UAN01.1. Please include your application and required quantity so we can confirm the applicable revision.

Request G101UAN01.1 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.

Request a matched display assembly
