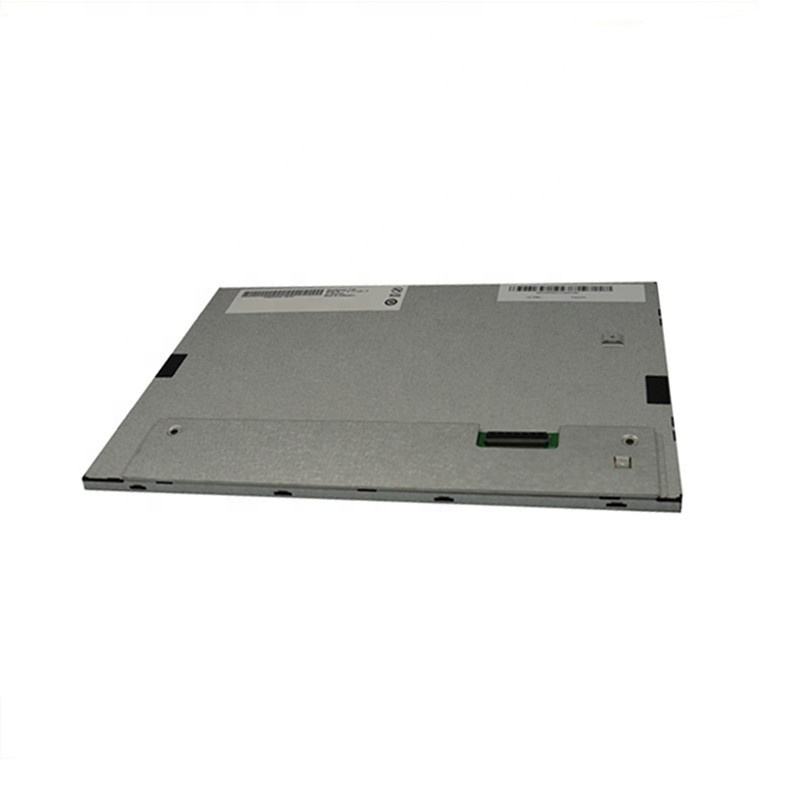

AUO G101UAN02.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G101UAN02.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 10.1inch | Designed For | Idustrial，Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | - |
| Features : | Hight Brightness，WLED Backlight，With LED Driver，Reverse I/F |
AUO G101UAN02.0 Optical Details
| Basic Information : | Luminance | 800 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Tf) ms |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility
| Sunlight Readable | Transmissivity
| - |
AUO G101UAN02.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1200, WUXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.038*0.113 (H*V) | Pixel Pitch(W×H) | 0.113*0.113 (H*V) [224PPI] |
| Physical Size : | Active Viewing(mm) | 216.81(H) *135.5(V) | Outline Dim.(mm) | 229.4(H) *150.5(V) |
| Bezel Opening(mm) | - | Overall Depth(mm) | 2.7/5.05 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Features : | Weight | 170g (Max.) | Surface | Hard coating, Antireflection |
AUO G101UAN02.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 5.54W (Typ.) |
AUO G101UAN02.0 Interface Detail
| Signal Electrical : | Input Current | 263/316mA (Typ./Max.) | Input Voltage | 3.3V (Typ.)(VDD) |
| Consumption | 0.87/1.04W (Max.) | Signal Interface | MIPI (4 data lanes) |
| Interface Features : | Position | Rear | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH34SRJ-34S-0.5SH(50) | 0.5mm | 34pins | 1 pcs | |
AUO G101UAN02.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S6P | Position | Edge light type |
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 33.9/34.8V (Typ./Max.) | Current Input | 17.9mA (Typ./Max.) |
| Consumption | 4.3/4.5W (Typ./Max.) |
| Interface Features : | Position | - | Type | Included in panel signal interface |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±1.2V | Current Supply | - |
AUO G101UAN02.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 40pcs / box | 387*387*320 mm | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G101UAN02.0. Please include your application and required quantity so we can confirm the applicable revision.
