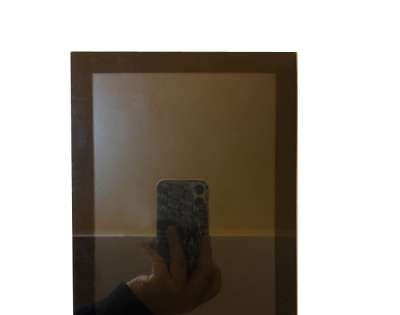

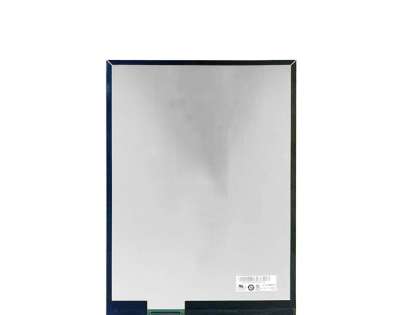

1.AUO G101UAN04.0 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G101UAN04.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 10.1inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
Vibration Level | RoHS | RoHS | ||
Specific Features : | Portrait type,WLED Backlight,Glossy | |||
2.AUO G101UAN04.0 Mechanical Features
Pixel Features : | Number of Pixel | 1200(RGB)×1920, WUXGA | Arrangement | RGB Vertical Stripe |
Dot Pitch (W×H) | 0.0376×0.1128 mm | Pixel Pitch (W×H) | 0.1128×0.1128 mm [225PPI] | |
Physical Size : | Active Viewing (W×H) | 135.36×216.576 mm | Bezel Area (mm) | - |
Outline Dimension (W×H) | 142×228.55 mm | Overall Depth | 2.95/5.36 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
Aspect Ratio | 10:16 (W : H) | Shape Style | - | |
Other Features : | Panel Cover | Weight | Surface | |
- | 167g (Max.) | Glare (Haze 0%) | ||
3.AUO G101UAN04.0 Optical Features
Basic Information : | Luminance | 500cd/m² (Typ.) | Contrast Ratio | 900 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation | 1.25 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 70% | sRGB Coverage | 91% |
Adobe RGB Coverage | 71% | DCI-P3 Coverage | 73% | |
Rec.2020 Coverage | 52% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Performance : | Sunlight Visibility | Sunlight Readable | ||
4.AUO G101UAN04.0 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 2.55W (Typ.) |
5.AUO G101UAN04.0 Interface Features
Signal Electrical : | Input Current | 136mA (Typ.) | Input Voltage | 3.3V (Typ.) | Power | 0.45W (Max.) |
Interface Features : | Position | - | Signal | MIPI (4 data lanes) | Type | Connector |
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
Panasonic | AYF564035 | 0.5mm | 40pins | 1pcs |
6.AUO G101UAN04.0 Backlight Features
Lamp Features: | Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
Interface Features : | Position | Type | WLED Driver | |||
- | Included in signal interface | No | ||||
7.AUO G101UAN04.0 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 26 | 1 | N/A | N/A | N/A |
Contact us to request the current datasheet and mechanical drawing for G101UAN04.0. Please include your application and required quantity so we can confirm the applicable revision.
