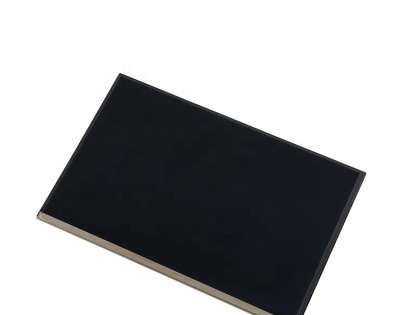

N101SAN01.0 10.1" Industrial TFT LCD Panel - Wide View Display Module

  • N101SAN01.0 10.1" Industrial TFT LCD Panel - Wide View Display Module
  • N101SAN01.0 10.1" Industrial TFT LCD Panel - Wide View Display Module
  • Model:N101SAN01.0
  • Brand:AUO
  • Size:10.1inch
  • Resolution:1024×600
  • Brightness:350 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:TTL
  • Operating Temp.:-10 ~ 60 °C
  • Production State:In Production
  • Request a Quote
  • Technical Parameters
  •  1、AUO N101SAN01.0 Application Details

    Basic Detail :

    Manufacturer

    AUO

    Model Name

    N101SAN01.0

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    10.1 inch

    Designed For

    Industrial

    Maximum Ratings :

    OP Temperature

    -10 ~ 60 °C

    ST Temperature

    -25 ~ 70 °C

    RoHS

    RoHS

    Vibration Level

    1.5G (14.7 m/s²)

    Features ::

    WLED Backlight,6/8 bit,Matte


    2、AUO N101SAN01.0 Mechanical Details

    Pixel Features :

    Number of Pixel

    1024(RGB)×600, WSVGA

    Arrangement

    RGB

    Dot Pitch(W×H)

    0.0725×0.2088 mm

    Pixel Pitch(W×H)

    0.2175×0.2088 mm  [117PPI]

    Physical Size :

    Active Viewing

    222.72(W)×125.28(H) mm

    Overall Dim.

    235(W)×143(H) mm

    Bezel Opening

    224.72(W)×127.28(H) mm

    Overall Depth

    5.5 (Max.) mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    16:9

    Shape   Style

    -

    Fixation :

    Without

    Other Detail :

    Mass

    -

    Surface

    Antiglare, Hard coating (3H)


    3、AUO N101SAN01.0 Optical Details

    Basic Information :

    Luminance

    350 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    25 (Typ.)(Tr+Td) ms

    Viewing Angle

    89/89/89/89 (Typ.)(CR≥10)

    Operating Mode

    AHVA, Normally White, Transmissive

    Color Performance :



    Chromaticity

    Wx:0.313; Wy:0.329

    Support Color

    262K/16.7M (6-bit / 6-bit + Hi-FRC)

    Color Temperature

    6485K

    White Variation

    1.25/1.33 (Typ./Max.)(5 points)

    1931 Color Gamut :

    NTSC Ratio

    60%

    sRGB

    77%

    Adobe RGB

    61%

    DCI-P3

    62%

    Rec.2020

    45%

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)



    4、AUO N101SAN01.0 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    No

    Total Consumption :

    2.41W (Typ.)

    Driver IC :

    Built-in ILI6150M6-9G + ILI5120

    Time Controller (T-CON) :

    Embedded T-CON


    5、AUO N101SAN01.0 Interface Details

    Signal Electrical :

    Input Current

    6.5/16/0.6/0.2mA (Typ.)(IDD/AIDD/IGH/IGL)

    Input Voltage

    3.3/10/22/-8V (Typ.)(VDD/AVDD/VGH/VGL)

    Consumption

    0.25W (Typ.)

    信号接口

    TTL (1 ch, 6/8-bit)

    Logic Voltage :

    0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD

    Interface Features :

    Position

    -

    Physical Type

    FPC

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount




    0.5 mm

    50 pins

    1 pcs



    6、AUO N101SAN01.0 Lightting Details

    Lamp Features :


    Lamp Type

    WLED

    Amount


    8S3P

    Position

    Edge light type

    Exchange

    -

    Lamp Shape

    -

    Lamp Life

    30K(Min.)   (Hours)

    Lamp Electrical :

    Input Voltage

    24/25.6V (Typ./Max.)

    Input Current

    30mA (Typ.)

    Consumption

    2.16/2.3W (Typ./Max.)

    Interface Features :

    Position

    -

    Physical Type

    Connector

    Interface Detail :


    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Pin Assignment

    molex

    51021-0200

    1.25 mm

    2 pins

    1 pcs

    BLE-2PINS-AC

    Backlight Driver  :

    No


    7、AUO N101SAN01.0 Packing Details

    Package Type

    Pcs/Package

    Package LWH (mm)

    G.W (kgs)

    Carton

    35

    527×347×257

    9.90




Datasheet and Drawing Request

Contact us to request the current datasheet and mechanical drawing for N101SAN01.0. Please include your application and required quantity so we can confirm the applicable revision.

Request N101SAN01.0 Datasheet

Complete your display assembly

Build a display assembly around your selected LCD panel. Explore touch panels, LCD controller boards and signal or backlight cables.

Touch panels and bonding

Review touch dimensions, host connection, cover glass and bonding requirements.

LCD controller boards

Match the host video output to the panel interface, timing and power requirements.

Signal and backlight cables

Confirm both connector ends, pin mapping, cable length and backlight connections.

We will review the selected panel, controller firmware, cable pinout, power and touch configuration before confirming the proposed assembly. Send your quantity, application, delivery country and required date.
