After the discontinuation of A104SN03 V1, we recommend using PC104TH603-B36-0-00 10.4-inch assembled screen, which can be directly used as a substitute. Interested customers can ask our customer service for the PC104TH603-B36-0-00 product specification sheet.

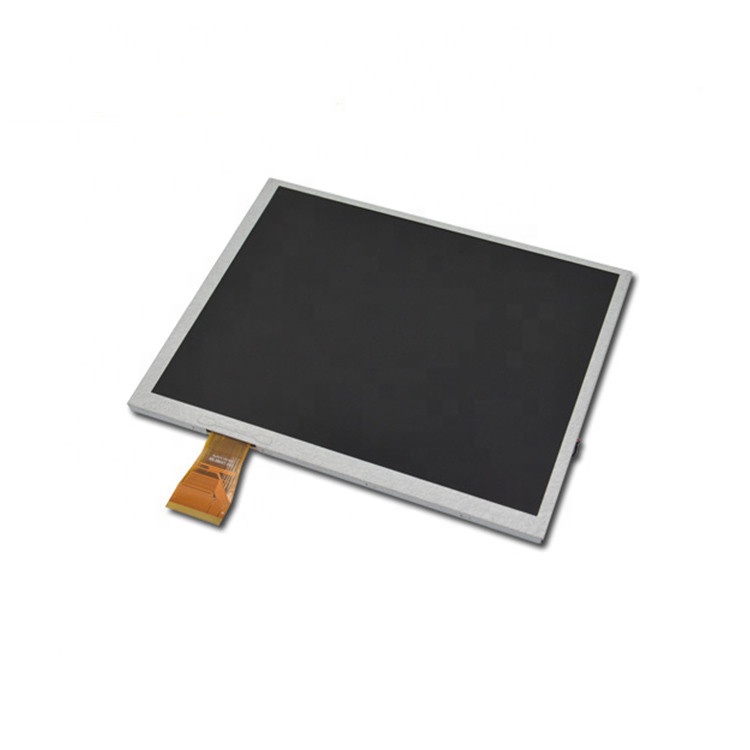

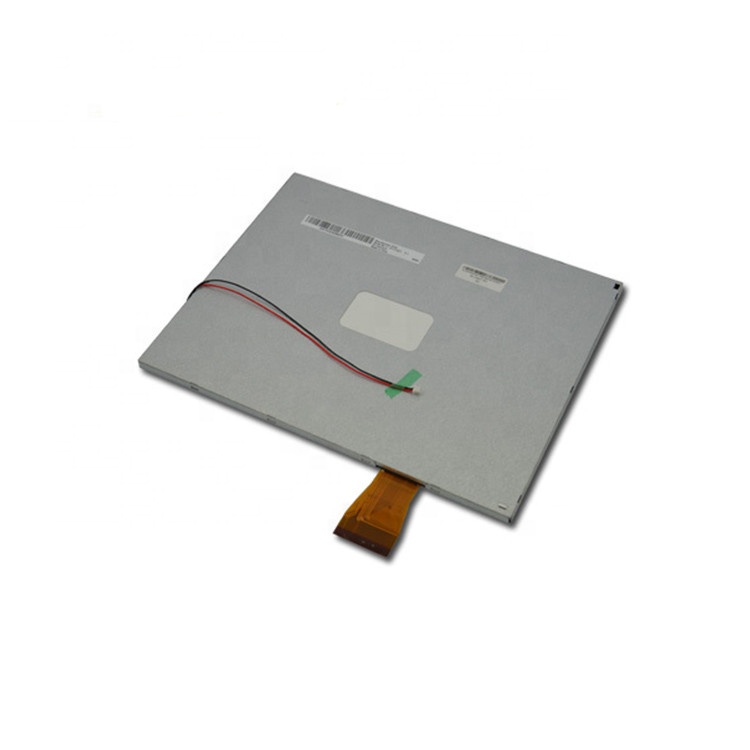

AUO A104SN03 V1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | A104SN03 V1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | A104SN03 V.1 |
| Panel Size | 10.4inch | Designed For | Idustrial，Digital Photo Frame |
| Maximum Ratings : | OP Temperature | -10~ 60°C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | WLED Backlight , 6/8 bit，Matte |
AUO A104SN03 V1 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 75/75/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.330; Wy:0.350 | Support Color | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 5598K | White Variation | 1.25/1.33 (Typ./max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 68% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO A104SN03 V1 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.088×0.264 mm (H×V) | Pixel Pitch(W×H) | 0.264×0.264 mm (H×V) [96PPI] |
| Physical Size : | Active Viewing(mm) | 211.2×158.4 mm (H×V) | Outline Dim. | 228.4×175.4 mm (H×V) |
| Bezel Area | 213.2×160.4 mm (H×V)) | Outline Depth | 6.2±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Shape Style | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Without |
| Other Detail : | Weight | 400±20g | Treatment | Antiglare, Hard coating (3H) |
AUO A104SN03 V1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 3.4W (Max.) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO A104SN03 V1 Interface Detail
| Signal Electrical : | Input Current | 10/24/0.4/-0.4 (Typ.)(ICC/IDD/IGH/IGL) | Input Voltage | 3.3/11/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Consumption | 0.56/0.8W (Typ./Max.) | Signal Interface | TTL (1 ch, 6/8-bit) + SPI |
| Logic Voltage for Signals : | GND≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 60pins | 1 pcs | |
AUO A104SN03 V1 Backlight Details
| Lamp Features : | Lamp Type | Array | Quantity | 3S12P | Position | Edge light type |
| Exchange | No | Lamp Type | WLED | Lamp Life | 10K(Typ.) (Hours) |
| Driver Electrical : | Voltage Input | 8.8/10.0/10.7V (Min./Typ./Max.) | Current Input | 300mA (Typ.) |
| Consumption | 3.0/3.21W (Typ./Max.) |
| Interface Features : | Position | - | Type | Connector |
| Backlight Driver : | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JOIN TEK | JT1025-1021 | | 2 pins | 1 pcs | BLE-2PINS-AC |
AUO A104SN03 V1 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 20pcs / box | 484*296*355mm | 11.0 Kgs |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for A104SN03 V1. Please include your application and required quantity so we can confirm the applicable revision.
