Specification status: G104SAN01.0 is currently documented under AUO Display Plus Preliminary Specification v0.2 dated March 24, 2026. Specifications, availability and the current controlled document revision should be reconfirmed before design-in or ordering.

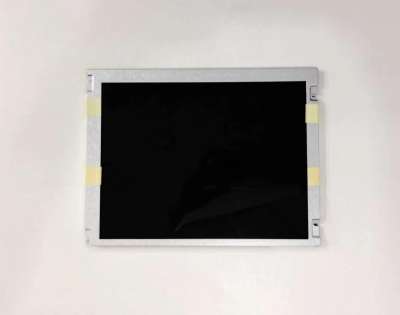

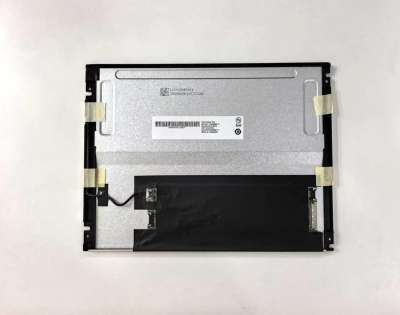

AUO G104SAN01.0 10.4-inch AHVA LCD Display
G104SAN01.0 is a 10.4-inch industrial TFT LCD module from AUO Display Plus. It features an 800 × 600 SVGA resolution, AHVA normally black display mode, 500 cd/m² typical brightness and a 1-channel 20-pin LVDS interface supporting 6-bit or 8-bit data.
The module has a typical contrast ratio of 1200:1 and wide viewing angles of 89° in all four directions. Its specified operating temperature range of -30°C to +80°C makes it a potential option for industrial control equipment, embedded systems, test instruments and other applications requiring a compact 4:3 display. Final suitability must be verified under the actual system conditions.
Key Specifications
| Item | Specification |
|---|
| Manufacturer | AUO Display Plus |
| Model | G104SAN01.0 |
| Display Size | 10.4 inch |
| Display Technology | AHVA, normally black |
| Resolution | 800 × 600 pixels (SVGA), 4:3 aspect ratio |
| Active Area | 211.2 × 158.4 mm |
| Outline Dimensions | 243 × 184 × 6.5 mm (Typ.) |
| Brightness | 500 cd/m² (Typ.), 400 cd/m² (Min.) |
| Contrast Ratio | 1200:1 (Typ.), 800:1 (Min.) |
| Viewing Angle | 89/89/89/89° (Typ.), CR ≥ 10 |
| Display Colors | 16.7M / 262K colors |
| Surface Treatment | Anti-glare, 3H hardness |
Interface, Power and Backlight
| Item | Specification |
|---|
| Signal Interface | 1-channel LVDS, 20-pin, 6/8-bit |
| Panel Supply Voltage | 3.3 V (Typ.) |
| LCD Power | 0.53 W (Typ.) |
| Backlight Supply | 12 V (Typ.), 10.8–13.2 V |
| Backlight Power | 3.02 W (Typ.) |
| Typical Total Power | 3.55 W under the specified all-white test condition |
| PWM Dimming | 200 Hz–20 kHz, 5–100% duty cycle |
| LED Life | 70,000 hours minimum under the specified test conditions |
Environmental Conditions
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Compliance | RoHS |
Design-in and Replacement Notice
The preliminary specification describes the LVDS input signals as compatible with AUO G104STN01.0.
This statement should not be treated as confirmation of a drop-in replacement. Before substitution, engineers should compare the complete mechanical drawing, mounting points, connector positions, pin assignment, timing, backlight requirements and the latest revision of both modules.
Module weight and RGB color-coordinate values are marked as TBD in the preliminary document. They are therefore not specified on this page. Please request the latest controlled specification and drawing before completing a mechanical or electrical design.
G104SAN01.0 FAQ
What is the AUO G104SAN01.0?
G104SAN01.0 is a 10.4-inch AUO Display Plus AHVA TFT LCD module with an 800 × 600 resolution, 500 cd/m² typical brightness and a 20-pin LVDS interface.
Is G104SAN01.0 a final mass-production specification?
The available document is identified as Preliminary Specification v0.2 dated March 24, 2026. Customers should confirm the latest controlled revision, production status and availability before ordering or approving the module for a project.
What are the resolution and brightness of G104SAN01.0?
The specified resolution is 800 × 600 pixels. Luminance is 500 cd/m² typical and 400 cd/m² minimum under the specified measurement conditions.
What interface does G104SAN01.0 use?
It uses a 1-channel, 20-pin LVDS signal interface and supports 6-bit or 8-bit display data. The panel supply voltage is 3.3 V typical.
Can G104SAN01.0 directly replace G104STN01.0?
The preliminary specification states that the LVDS input signals are compatible with G104STN01.0, but this alone does not confirm a direct replacement. Mechanical dimensions, connector locations, pin assignment, timing, backlight power and document revisions must all be checked.
What is the operating temperature range?
The specified operating temperature range is -30°C to +80°C. The final system should still be validated for enclosure temperature, airflow, vibration and application-specific environmental conditions.
Where can I obtain the latest datasheet and drawing?
Use the inquiry link on this page and include the complete model number G104SAN01.0. The current controlled specification, drawing, availability and quotation can then be checked for your project.
Is G104SAN01.0 currently available to order?
Availability is subject to confirmation. Please submit the required quantity, delivery location and project schedule through the G104SAN01.0 inquiry form.
