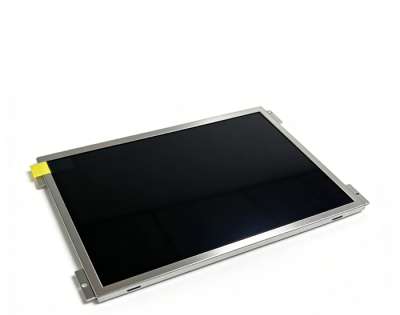

1.AUO G104VAN02.0 Application Features
Basic Detail : | Manufacturer | AUO | Model Name | G104VAN02.0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 10.4inch | Designed For | Industrial | |
Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS | |
Specific Features : | Wide Temperature,WLED Backlight,Life≥70K hours,With LED Driver,,180°Reverse,Matte | |||
2.AUO G104VAN02.0 Mechanical Features
Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe | |
Dot Pitch | 0.110×0.330 mm (H×V) | Pixel Pitch | 0.330×0.330 mm (H×V) [76PPI] | ||
Physical Size : | Active Viewing | 211.2×158.4 mm (H×V) | Bezel Area (W×H) | 215.4×161.8 mm (H×V) | |
Outline Dimension | 243×185.1 mm (H×V) | Overall Depth | 10.5±0.5 mm | ||
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type | |
Aspect Ratio | 4:3 (W : H) | Shape Style | - | ||
Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | ||||
Other Features : | Weight | 564g (Max.) | Surface | Antiglare, Hard coating (3H) | |
3.AUO G104VAN02.0 Optical Features
Basic Information : | Luminance | 450cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 20/10 (Typ.)(Tr/Td) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
Color Performance : | White color Chromaticity | X:0.313; Y:0.329 | Color Amount | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
4.AUO G104VAN02.0 Electronics Features
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 3.3W (Typ.) |
5.AUO G104VAN02.0 Interface Features
Signal Systerm : | TTL (1 ch, 6-bit) | Logic Voltage | - | |||
Signal Electrical : | Input Current | 155mA (Typ.)(Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.51W (Typ.) | |||||
Interface Features : | Type | Connector | Position | - | ||
Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
HRS | DF9B-31P-1V | 1.0mm | 31pins | 1pcs | DRGB-31P1C6B-010F | |
6.AUO G104VAN02.0 Backlight Features
Lamp Features: | Shape | 3strings | Lamp Type | WLED | Position | Edge light type (Bottom side) | |||||
Exchange | - | Amount | 5S3P | Life | 70K(Typ.) (Hours) | ||||||
Lamp Electrical: | Voltage Input | 15V(Typ.) | Current Input | 50mA (Typ.) | |||||||
Consumption | 2.25W (Typ.) | ||||||||||
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver | |||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||
JST | SM08B-SRSS-TB | 1.0mm | 8pins | 1pcs | BLE-8PINS-ACACACNN | ||||||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 240mA (Typ.) | |||||||
Consumption | 2.82W (Typ.) | ||||||||||
7.AUO G104VAN02.0 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 20 | 1 | 475×288×455 | 11.50 | 0.0622 |
Contact us to request the current datasheet and mechanical drawing for G104VAN02.0. Please include your application and required quantity so we can confirm the applicable revision.
