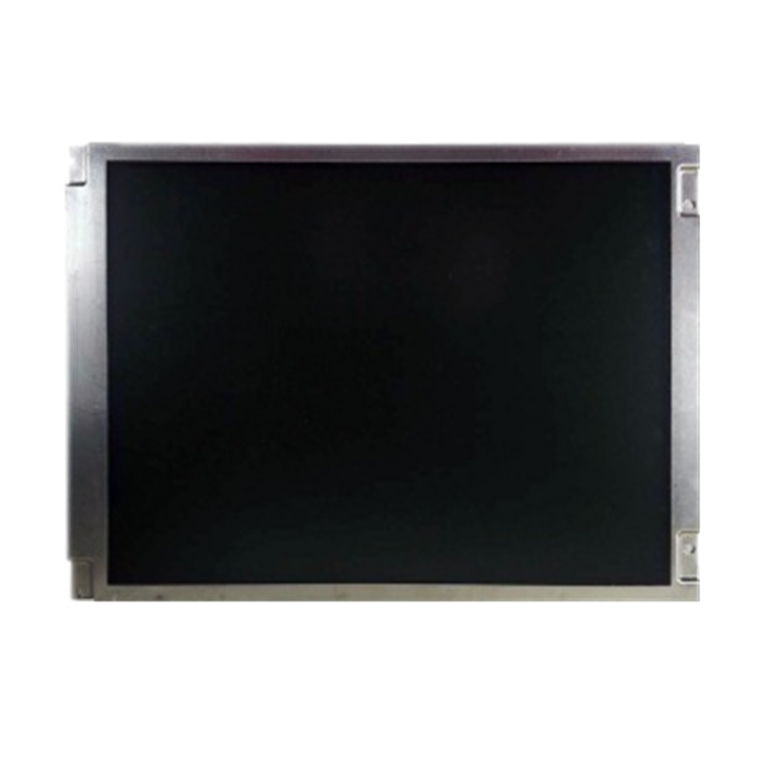

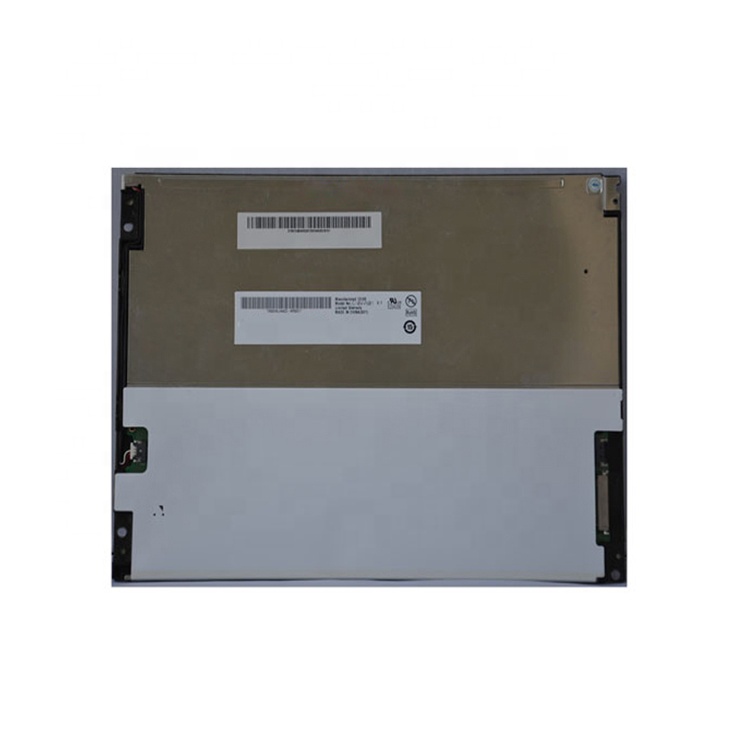

AUO G104VN01 V1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G104VN01 V1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G104VN01 V.1 | |
| Panel Size | 10.4inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,180°Reverse, Matte | |||
AUO G104VN01 V1 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6638K | White Variation | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 44% | sRGB | 62% coverage |
| Adobe RGB | 46% coverage | DCI-P3 | 46% coverage | |
| Rec.2020 | 33% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G104VN01 V1 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480, VGA | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.110*0.330 mm | Pixel Pitch(W×H) | 0.330*0.330 mm [76PPI] | ||||
| Physical Size : | Active Viewing(mm) | 211.2(H) *158.4(V) | Outline Dim.(mm) | 243(W)*176.6(H) mm | |||
| Bezel Area(mm) | 214.8(H) *162.4(V) | Depth(mm) | 8.5±0.5 mm | ||||
| Outline Features : | Form Style | Flat Rectangle | Shape Style | ||||
| Aspect Ratio | 4:3(H:V) | Orientation | Landscape type | ||||
| Mounting : | Face mounting holes (1-Φ3.4, 3-R1.7) on left, right bezel | ||||||
| Other Spec : | Weight | 390g (Typ.) | Treatment | Antiglare, Hard coating (3H) | |||
AUO G104VN01 V1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 5.4W (Typ.) |
AUO G104VN01 V1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 280mA (Typ.) | ||
| Consumption | 0.924W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB24013P20HA | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080A | |
AUO G104VN01 V1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S2P | Position | Edge light type (Bottom side) | ||||||||
| Exchange | Replaceable | Lamp Shape | 2 strings | Lamp Life | 50K(Min.) (Hours) | |||||||||
| Lamp Electrical : | Input Voltage | 25.5/29.2V (Typ./Max.) | Input Current | 80mA (Typ.) | ||||||||||
| Consumption | 4.1W (Typ.) | |||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||||
| E&T | 3808K-F05N-02R | 1.25 mm | 5 pins | 1 pcs | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 0.37A (Typ.) | ||||||||||
| Consumption | 4.44W (Typ.) | |||||||||||||
AUO G104VN01 V1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 10.0Kgs | 483*285*355 mm (L*W*H) |
