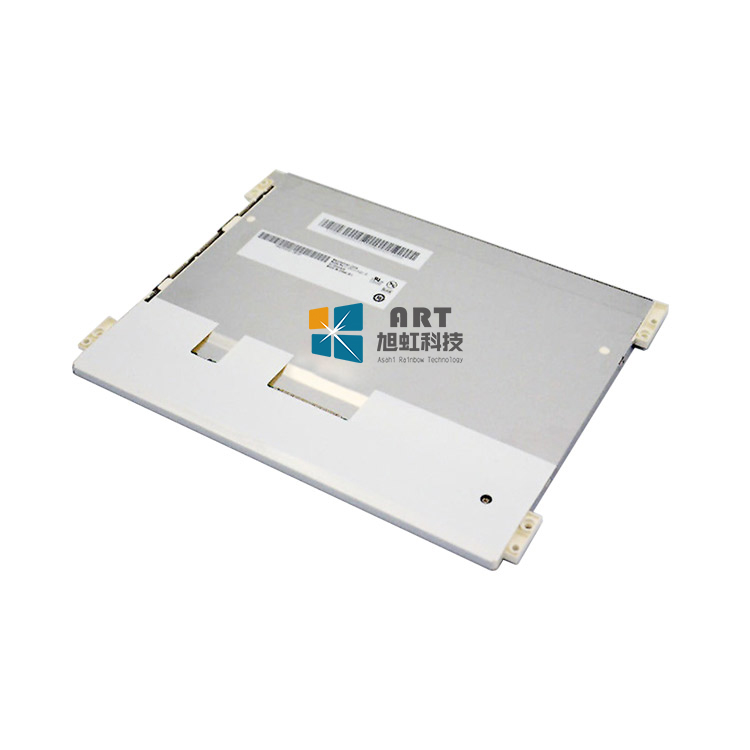

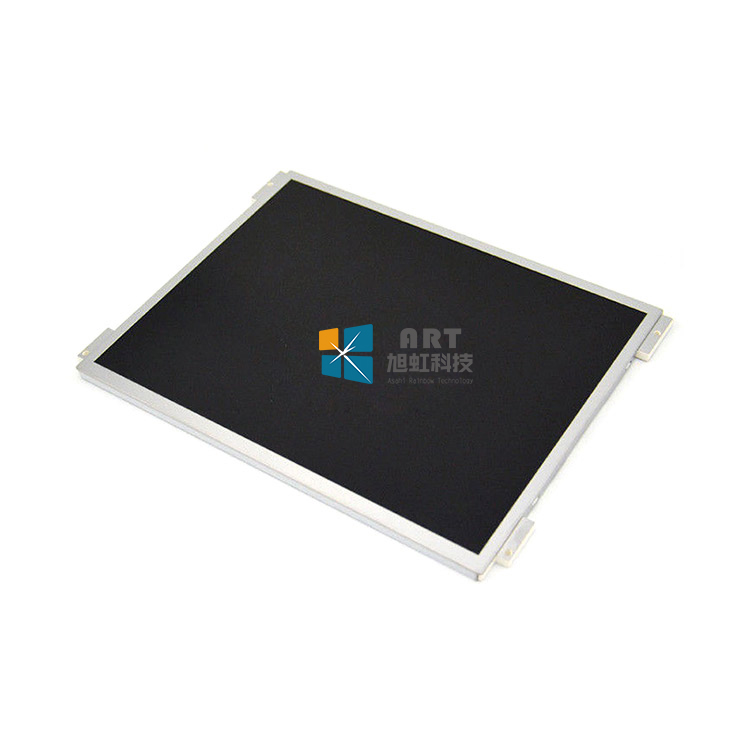

AUO G104VTN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G104VTN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Panel Size | 10.4inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature,WLED Backlight,Life>=70K hours, 180°Reverse | |||
AUO G104VTN01.0 Optical Details
| Basic Information : | Luminance | 370 cd/m² (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 20/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Support Color | 262K (6-bit) |
| Color Temperature | 6638K | White Variation | - |
AUO G104VTN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480, VGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.110*0.330 mm | Pixel Pitch(W*H) | 0.330*0.330 mm [76PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(H) *158.4(V) | Outline Dim.(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
AUO G104VTN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
AUO G104VTN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - |
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) |
AUO G104VTN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) |
| Exchange | - | Lamp Shape | - | Lamp Life | 70K(Min.) (Hours) |
Contact us to request the current datasheet and mechanical drawing for G104VTN01.0. Please include your application and required quantity so we can confirm the applicable revision.
