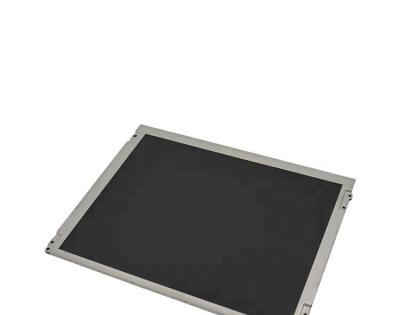

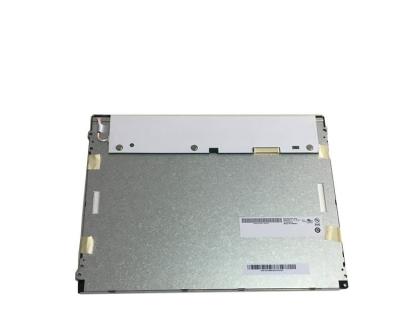

AUO G121SN01 V403 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121SN01 V403 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | ||
| Panel Size | 12.1inch | Designed For | Idustrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,Lamp Repaceable,WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F,180°;Reverse,6/8 bit,Matte | |||
AUO G121SN01 V403 Optical Details
| Basic Information : | Luminance | 500cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 25/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 74% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121SN01 V403 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe | |||
| Dot Pitch(W×H) | 0.1025*0.3075 mm (H*V) | Pixel Pitch(W×H) | 0.3075*0.3075 mm (H*V) [82PPI] | ||||
| Physical Size : | Active Viewing(mm) | 246*184.5 mm (H*V) | Outline Dim.(mm) | 279*209 mm (H*V) | |||
| Bezel Area(mm) | 249.05*188.3 mm (H*V) | Depth(mm) | 9.0 (Typ.) mm | ||||
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | ||||
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | ||||
| Mounting : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel | ||||||
| Other Spec : | Weight | 750g (Max.) | Treatment | Antiglare, Hard coating (3H) | |||
AUO G121SN01 V403 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 4.62W (Typ.) |
AUO G121SN01 V403 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 200/240mA (Typ./Max.) | ||
| Consumption | 0.66/0.79W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
| Interface Features : | Position | Rear | Type | Connector | ||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080B | |
AUO G121SN01 V403 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 7S3P | Position | Edge light type (Top side) | |||||||
| Exchange | Replaceable | Lamp Shape | 3 strings | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Lamp Electrical : | Voltage Input | 22.4/25.2V (Typ./Max.) | Current Input | 45mA (Typ.) | |||||||||
| Consumption | 3.02/3.4W (Typ./Max.) | ||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||||
| E&T | 3808K-F05N-02R | 1.25 mm | 5pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Voltage Supply | 10.8/12.0/12.6V (Min./Typ./Max.) | Current Supply | 330/400mA (Typ./Max.) | |||||||||
| Consumption | 3.96/4.80W (Typ/Max.) | ||||||||||||
AUO G121SN01 V403 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 18.2 Kgs | 570*320*420mm (L*W*H) |
