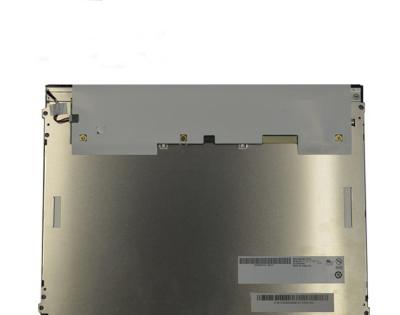

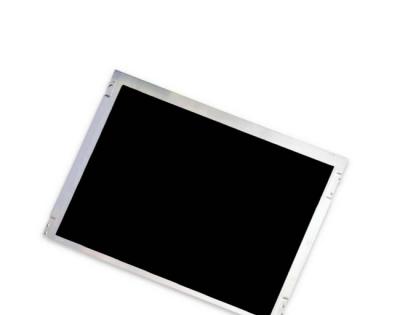

AUO G121STN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G121STN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | |
| Panel Size | 12.1inch | Designed For | Idustrial |
| Maximum Ratings : | OP Temperature | -30 ~ 85°C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°Reverse，6/8 bit,Matte |
AUO G121STN01.0 Optical Details
| Basic Information : | Luminance | 300cd/m²(Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 25/10 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 80% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G121STN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.1025*0.3075 mm (H×V) | Pixel Pitch(W*H) | 0.3075*0.3075 mm (H*V) [82PPI] |
| Physical Size : | Active Viewing(mm) | 246*184.5 mm (H*V) | Outline Dim.(mm) | 279*209 mm (H*V) |
| Bezel Area(mm) | 249.05*188.3 mm (H*V) | Depth(mm) | 5.73/9.5 (Typ./Max.) mm
|
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Face mounting holes (6-Φ3.4, 1-R1.7) on left and right bezel |
| Other Spec : | Weight | 580g (Max.) | Treatment | Antiglare, Hard coating (3H) |
AUO G121STN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 4.61W (Typ.) |
AUO G121STN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 285mA (Typ.) |
| Consumption | 0.94/1.03W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) |
| Interface Features : | Position | Rear | Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| STM | MSB240420E | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-080B |
AUO G121STN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S2P | Position | Edge light type (Top side) |
| Exchange | Replaceable | Lamp Shape | 2 strings | Lamp Life | 30K(Min.) (Hours) |
| Lamp Electrical : | Voltage Input | 30.6/32.4V (Typ./Max.) | Current Input | 60/90mA (Typ./Max.) |
| Consumption | 3.7/5.8W (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
| E&T | 3808K-F05N-02R | 1.25 mm | 5pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply | 12.0±0.6V | Current Supply | 0.31A (Typ.) |
| Consumption | 3.76/4.04W (Typ./Max.) |
AUO G121STN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20 pcs / box | 14.8 Kgs | 570*320*420mm (L*W*H) |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G121STN01.0. Please include your application and required quantity so we can confirm the applicable revision.
